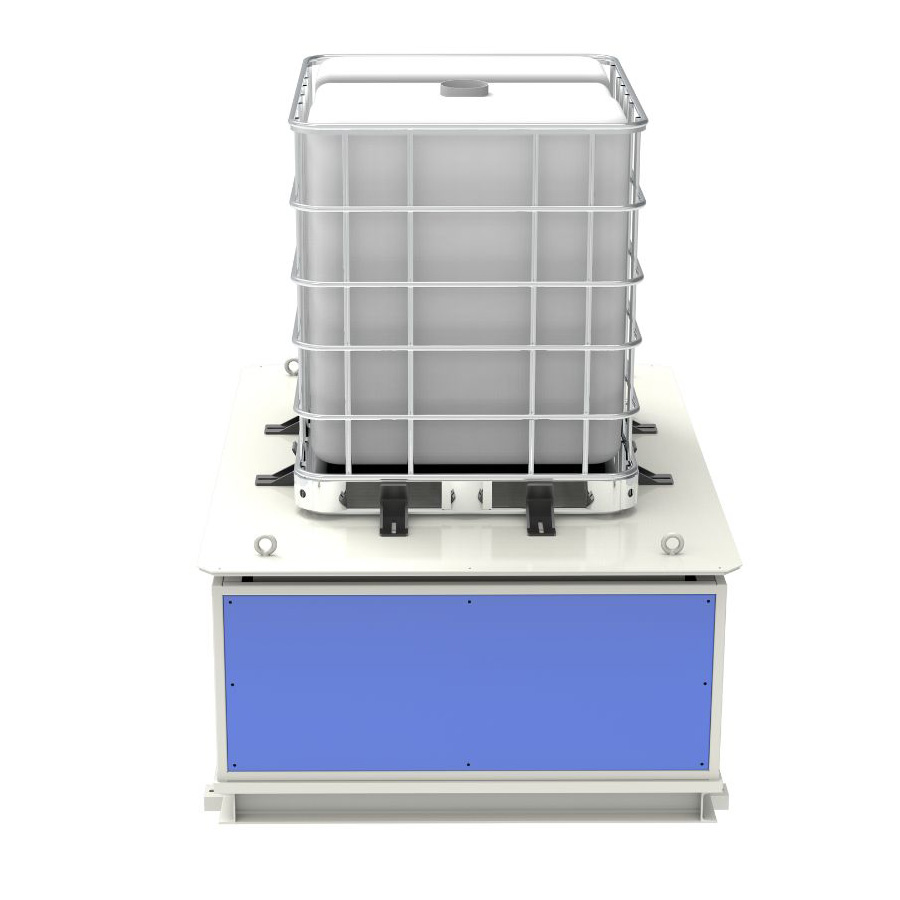

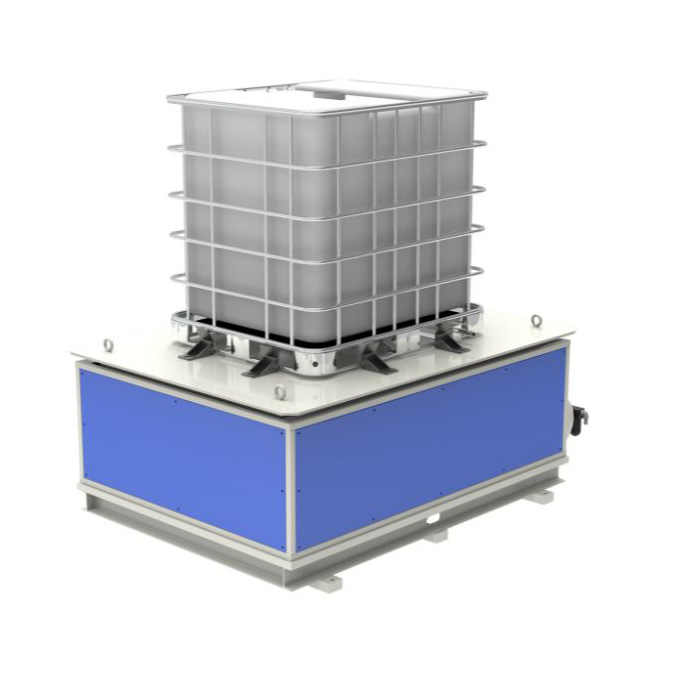

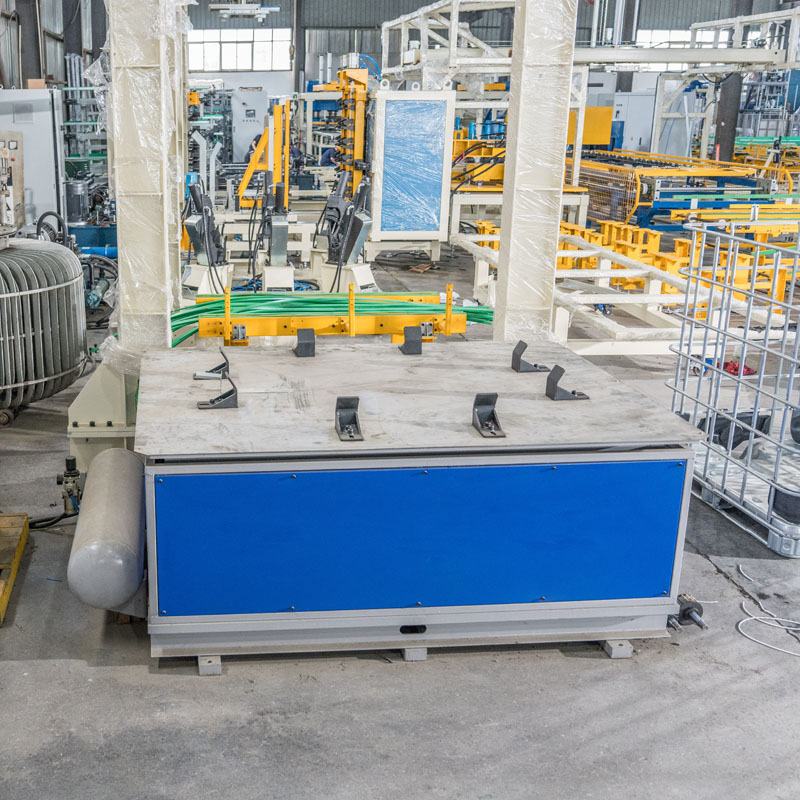

IBC Vibrating Machine
Key Features
Efficient Vibration Processing to Remove Welding Stress
The controlled vibration process removes residual welding stress, preventing frame distortion.
Improves the overall stability and compressive strength of the structure, ensuring product quality.
Versatile Vibration Design
Adjustable vibration frequency and intensity to meet the needs of different pipe materials and structural components.
Suitable for various types of IBC frames, including steel pipes, support blocks, and bottom plates.
Energy-Efficient and Easy Operation
Uses electric or pneumatic vibration systems, offering high efficiency and low energy consumption.
Simple PLC automatic control for easy operation and stable vibration performance.
Enhanced Component Strength and Longevity
Vibration helps remove impurities and moisture, ensuring no residue is left in the pipes, improving the frame's long-term reliability.
Technical Specifications (Reference Model)
Item | Specification |
Drive Method | Electric Vibrator |
Control Method | PLC automatic control system (adjustable frequency and vibration intensity) |
Vibration Frequency | 50–100Hz adjustable |
Vibration Amplitude | 3–6mm (adjustable) |
Vibration Time | 10–15 minutes per batch |
Applicable Materials | Galvanized steel pipes / Support pipes / IBC frame materials |
Application Scope | Post-weld treatment and structural reinforcement of IBC metal frames |
Power Requirements | AC 380V / 50Hz (customizable) |

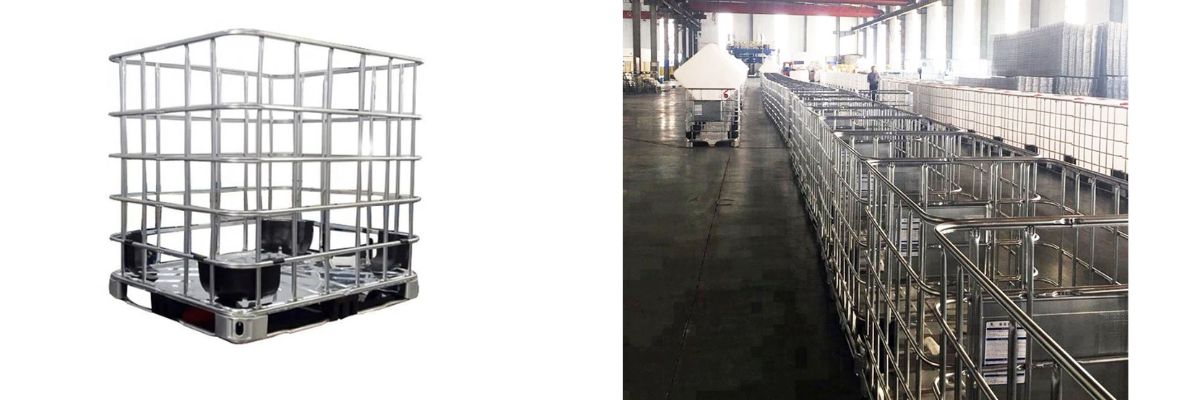

IBC Cage Display
Typical Application Areas
Stress relief for I-frame structures and corner pipe connections post-welding
Enhancing frame structural compressive strength and stability
Removal of impurities and moisture within frame pipes
Strengthening the pressure distribution of IBC bottom plates, improving load-bearing capacity
Feature | Benefit |
Specialized Design | Specifically designed for post-weld treatment of IBC frames, ensuring optimal vibration results. |
High Efficiency and Stability | Easy adjustment to meet the needs of different IBC frame types. |
Energy-Efficient | Low energy consumption with high vibration efficiency, perfect for mass production. |
Enhanced Structural Strength | Removes stress and impurities to ensure a solid and durable product. |
Factory-Direct Supply | Customization options, direct factory supply, quality assurance. |
Our Team
IBC Technology R&D Team
7* 24-hour online service Department
IBC Machine Assembly Team
IBC Cases
Customer from Bangladesh
Customer from Brazilian
Customer from Spanish
FAQ
Q1: What types of IBC cage production lines do you offer?
A: We provide both fully automatic and semi-automatic IBC cage production lines. Each system is designed for different capacity needs and budget ranges. Fully automatic lines are ideal for high-volume, standardized production, while semi-automatic solutions offer more flexibility and lower initial investment.
Q2: Can your production line handle different cage sizes or designs?
A: Yes, our line is designed with adjustable tooling and control systems, which allow it to handle various IBC cage sizes and mesh layouts, ensuring maximum flexibility for multi-product manufacturers.
Q3: Is technical support or training provided?
A: Absolutely. We provide on-site installation guidance, operator training, and after-sales technical support, including remote diagnostics and spare parts service.
Q4: How long is the delivery and installation time?
A: Production lead time is around 90–120 working days depending on the order complexity. Installation and commissioning usually take 7–15 days on-site with our technical team.
Q5: Can I customize the machine layout according to my factory space?
A: Yes. We provide layout design based on your workshop dimensions, helping you optimize production flow and space usage.
Q6: Do you offer CE or other international certifications?
A: Yes, our machines can be CE certified and comply with international industrial standards. Additional certifications are available based on customer requirements.
