Fully automatic IBC Cage Mesh Welding Machine IBC cage mesh frame production line

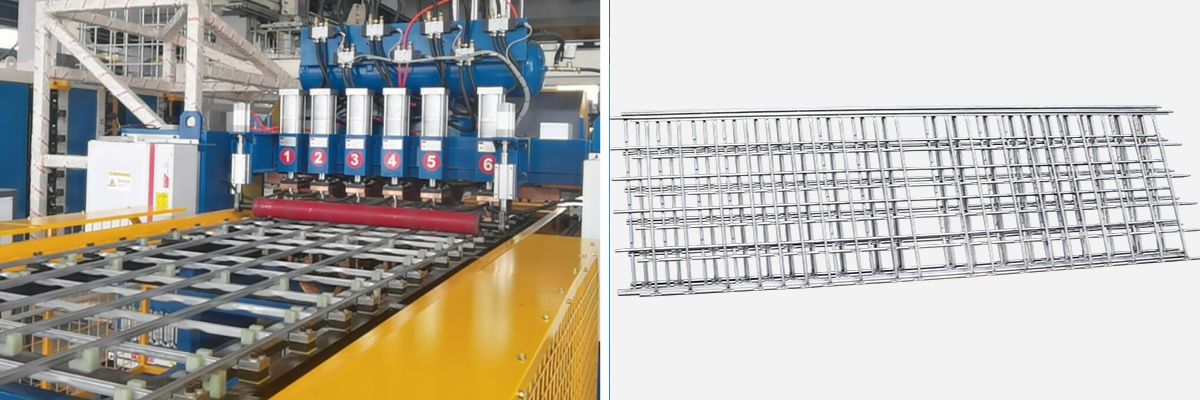

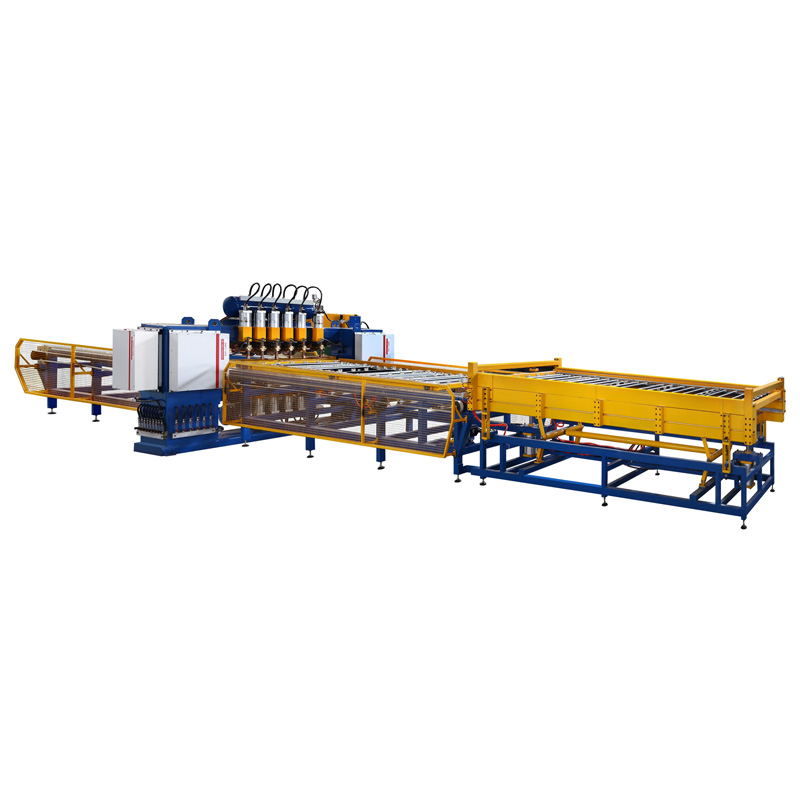

IBC Cage Mesh Welding Machine

Key Benefits

• Precise Welding Positioning

Ensures mesh is uniform and structurally sound for cage assembly.

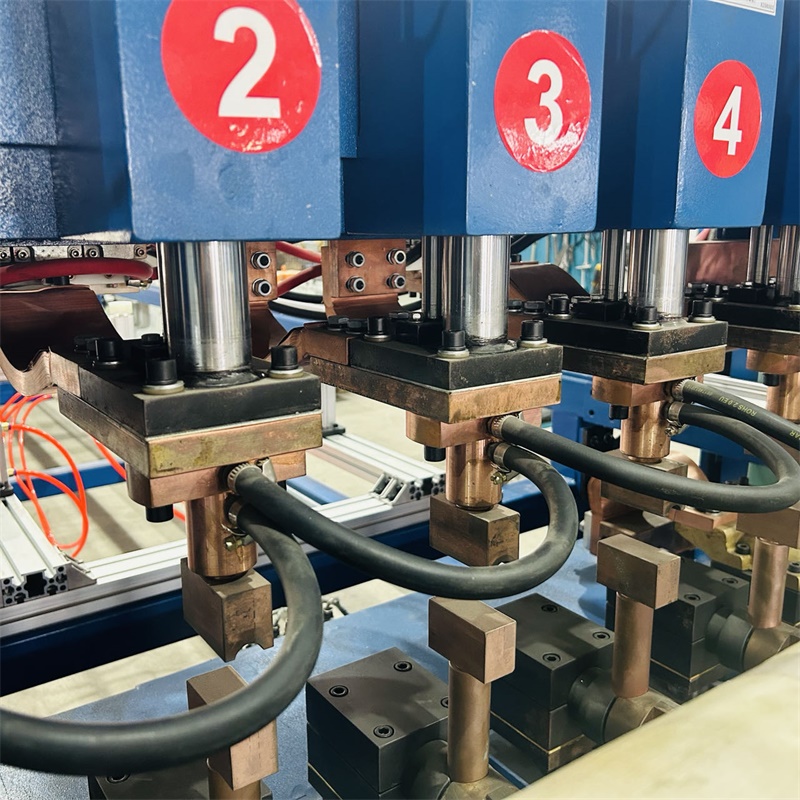

• High-Speed Production

Welds multiple cross-points simultaneously to save labor and time.

• Customizable Mesh Sizes

Suitable for different cage designs and reinforcement needs.

• Durable & Easy Maintenance

Industrial-grade structure, designed for long-term operation.

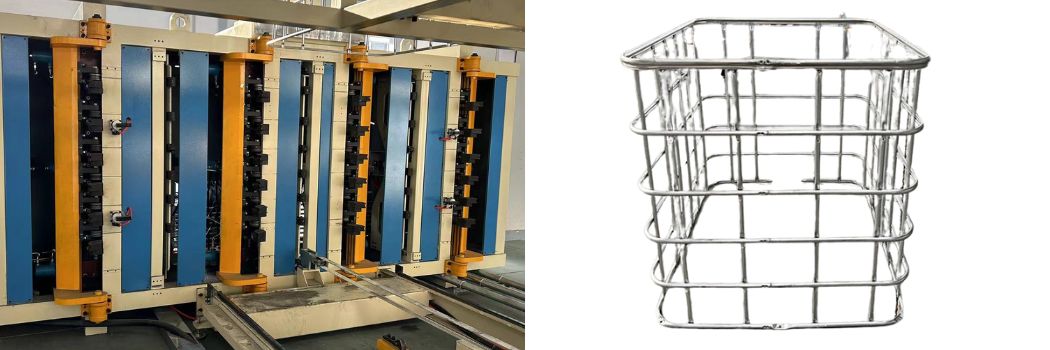

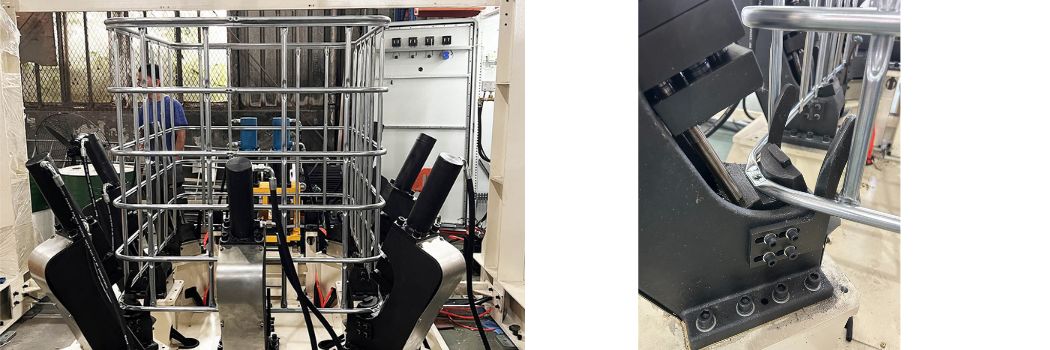

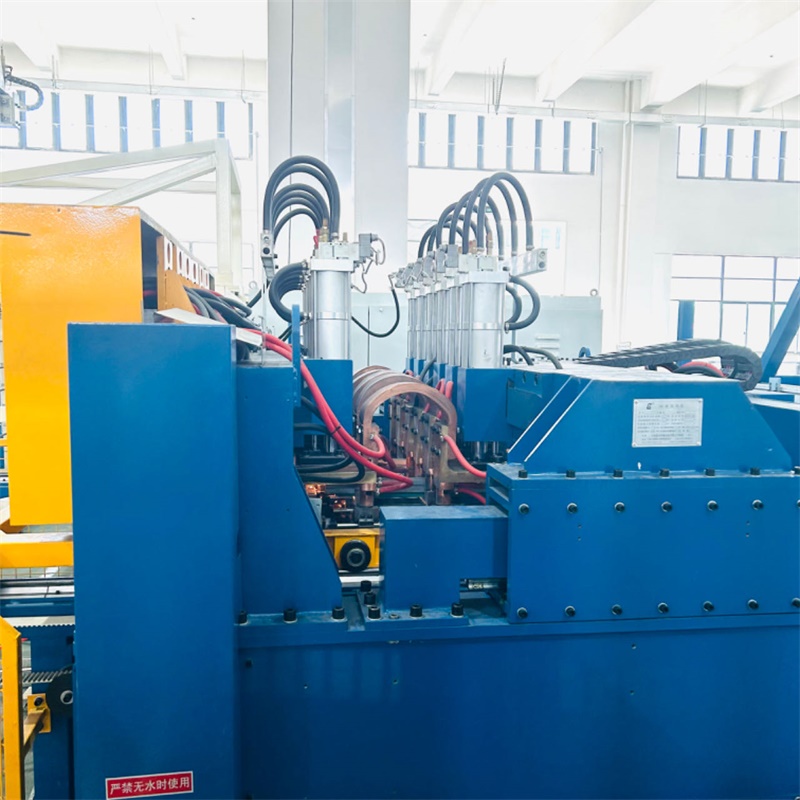

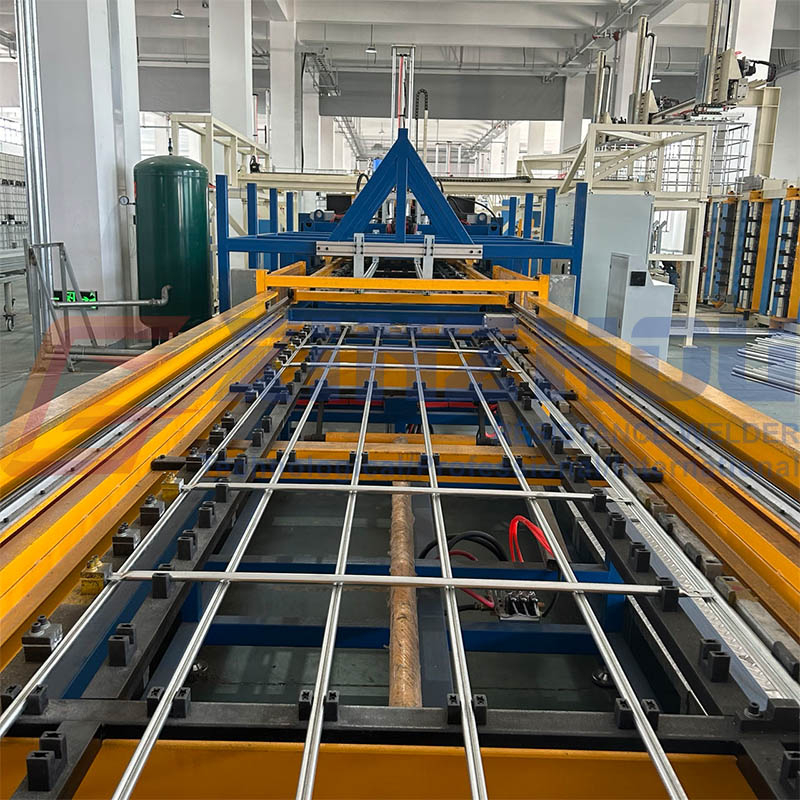

1.IBC cage mesh grid welding machine

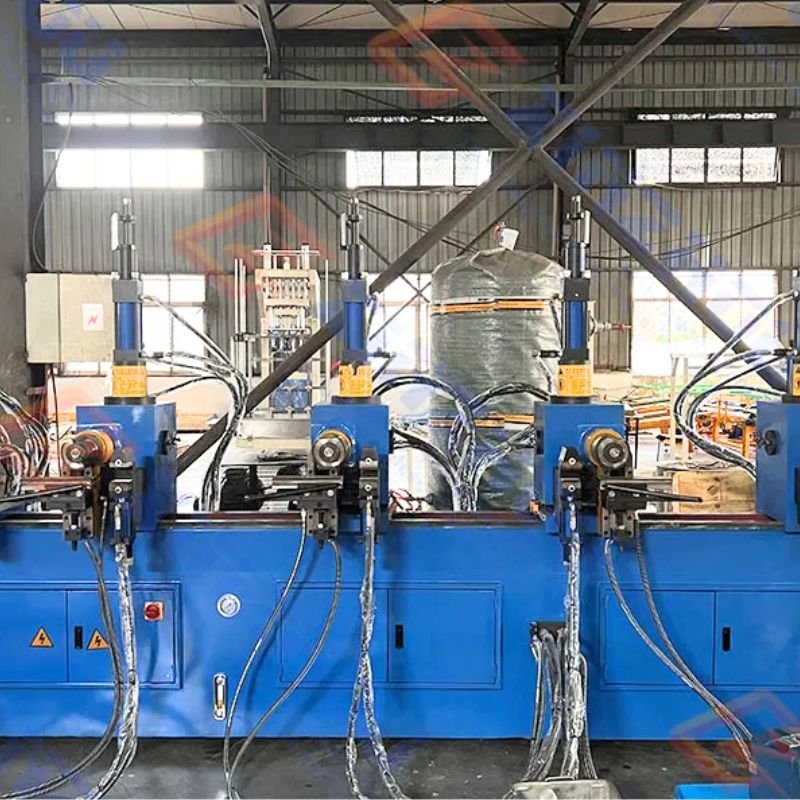

2.IBC cage mesh bending machine

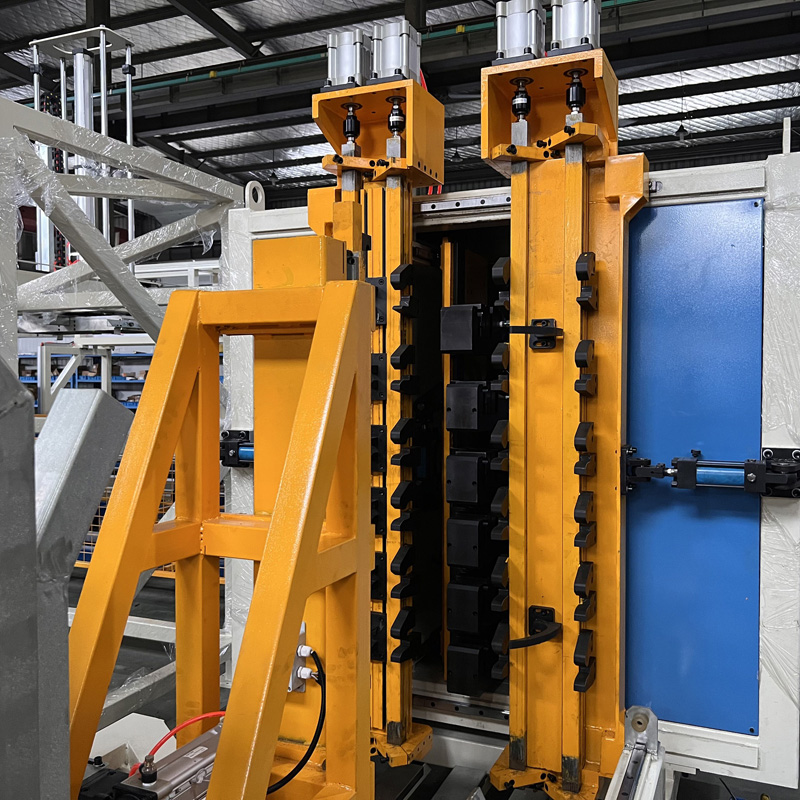

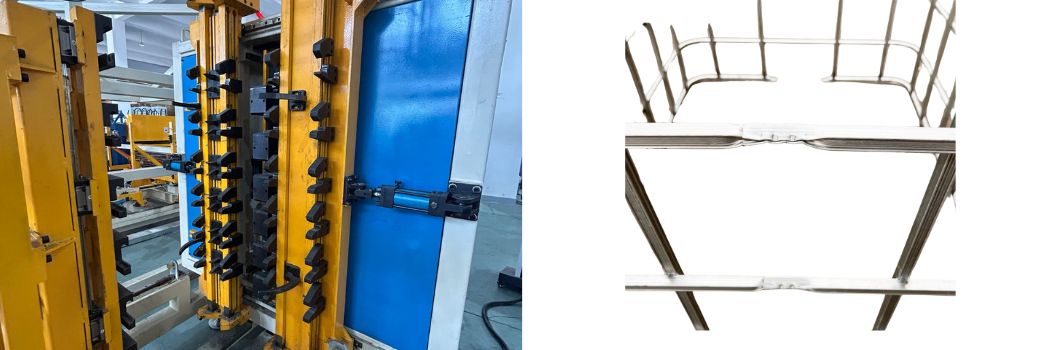

3.IBC cage frame clinching machine

4.IBC cage punching machine

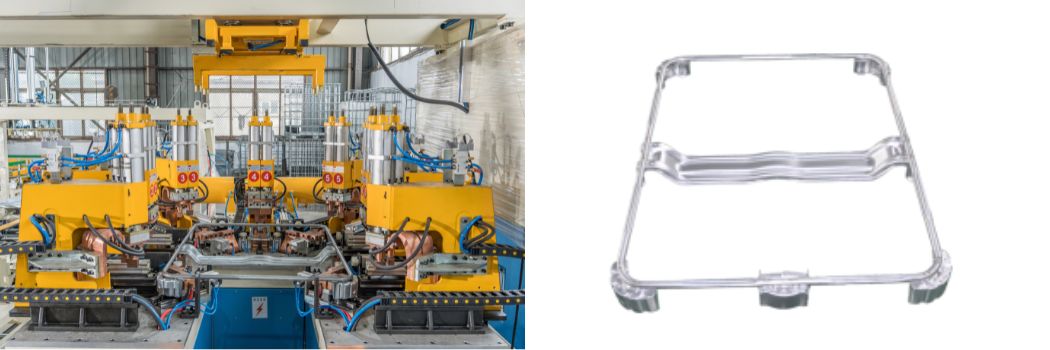

5.IBC cage steel pallet welding machine

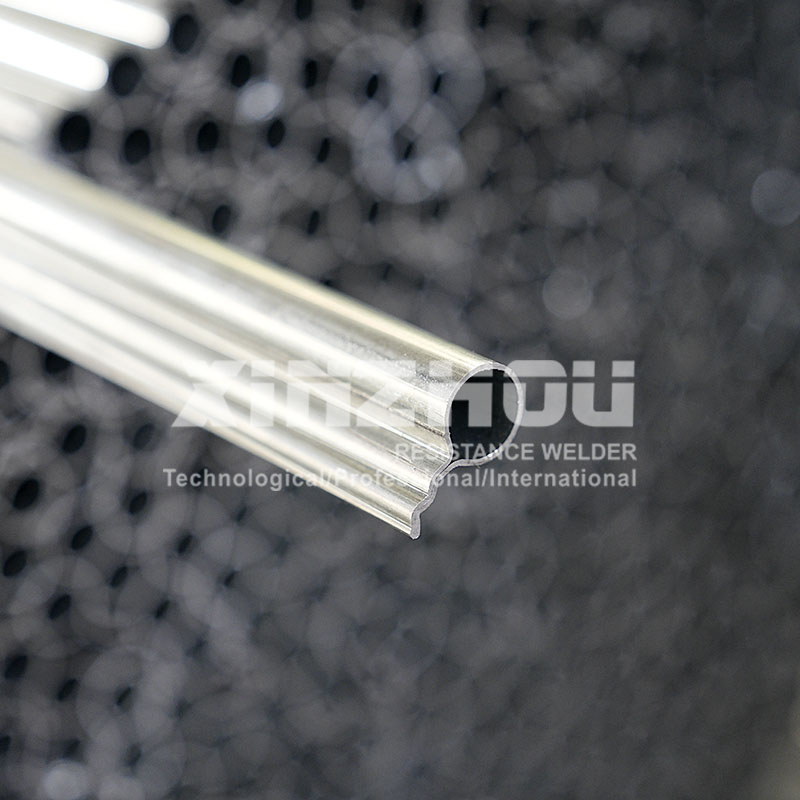

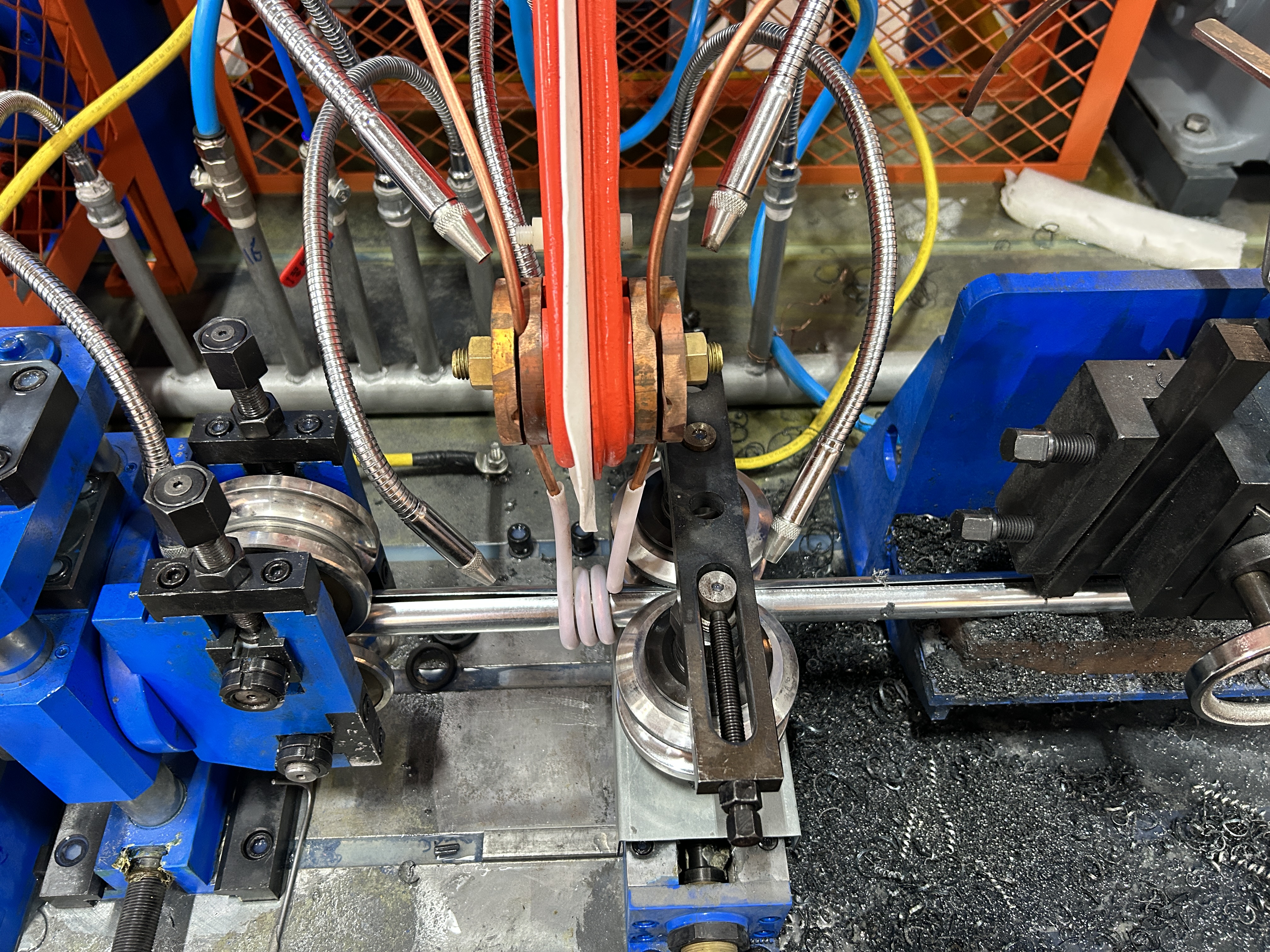

Optional 1：  IBC Tube /pipe welding machine

Optional 2：IBC tube automatic feeding machine

For more optionals, please contact us.

Technical Specifications

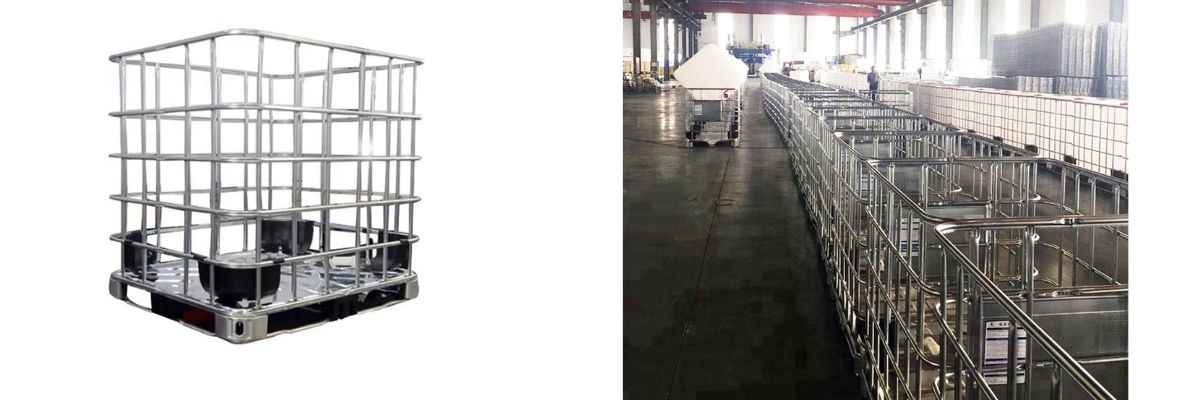

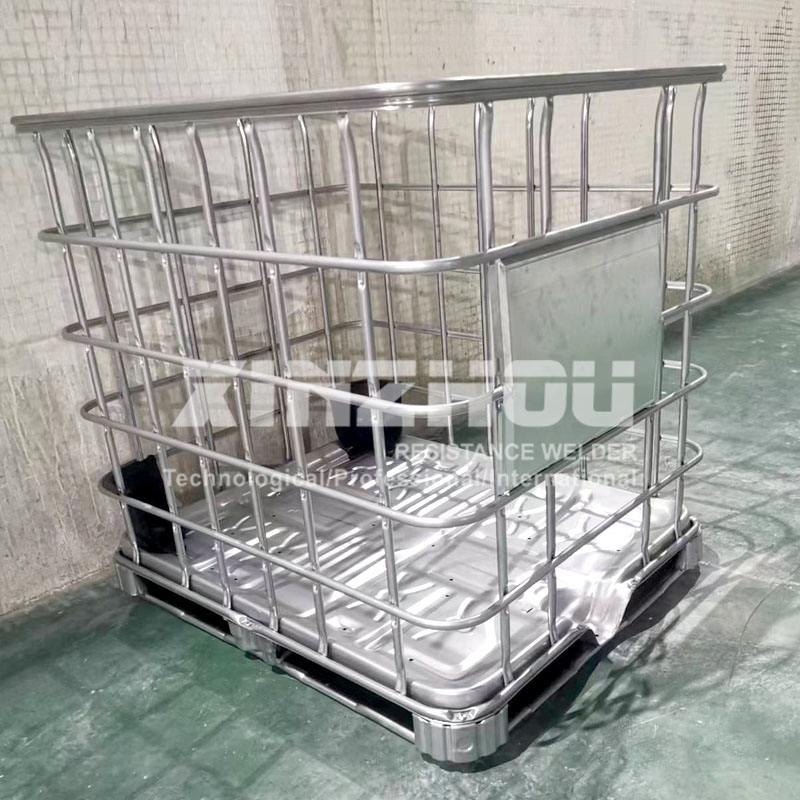

IBC Cage Display

Application in IBC Cage Production

The welded wire mesh is used for the side panels, bottom support, and corner frames of 1000L IBC tanks. These mesh structures:

• Support HDPE inner tanks

• Prevent bulging under liquid pressure

• Ensure safety during transport and stacking

• Are usually galvanized after welding for anti-rust performance

Common specifications:

• Material: low-carbon steel wire or galvanized wire

Optional Configurations

• Automatic wire feeding system

• Servo-controlled welding arm

• Mesh size adjustment system

• Finished mesh stacking system

Industry-Proven Reliability

Trusted by IBC manufacturers across Europe, Southeast Asia, and South America.

Our welding machines are already serving in high-volume IBC production lines, working seamlessly with cage frame bending, corner assembly, and full IBC cage automation setups.

About xinzhou

• Over 27 years in welding automation

• In-house R&D + Factory-direct pricing

• Global installation & training support

• CE/ISO-certified, heavy-duty machine build

• Fast production cycle with customizable configuration

Why Choose Xinzhou？

Our Factory

Our Team

IBC Technology R&D Team

7* 24-hour online service Department

IBC Machine Assembly Team

IBC Cases

Customer from Bangladesh

Customer from Brazilian

Customer from Spanish

FAQ

Q1: What types of IBC cage production lines do you offer?

A: We provide both fully automatic and semi-automatic IBC cage production lines.    Each system is designed for different capacity needs and budget ranges.    Fully automatic lines are ideal for high-volume, standardized production, while semi-automatic solutions offer more flexibility and lower initial investment.

Q2: Can your production line handle different cage sizes or designs?

A: Yes, our line is designed with adjustable tooling and control systems, which allow it to handle various IBC cage sizes and mesh layouts, ensuring maximum flexibility for multi-product manufacturers.

Q3: Is technical support or training provided?

A: Absolutely.    We provide on-site installation guidance, operator training, and after-sales technical support, including remote diagnostics and spare parts service.

Q4: How long is the delivery and installation time?

A: Production lead time is around 90–120 working days depending on the order complexity.    Installation and commissioning usually take 7–15 days on-site with our technical team.

Q5: Can I customize the machine layout according to my factory space?

A: Yes. We provide layout design based on your workshop dimensions, helping you optimize production flow and space usage.

Q6: Do you offer CE or other international certifications?

A: Yes, our machines can be CE certified and comply with international industrial standards.    Additional certifications are available based on customer requirements.
