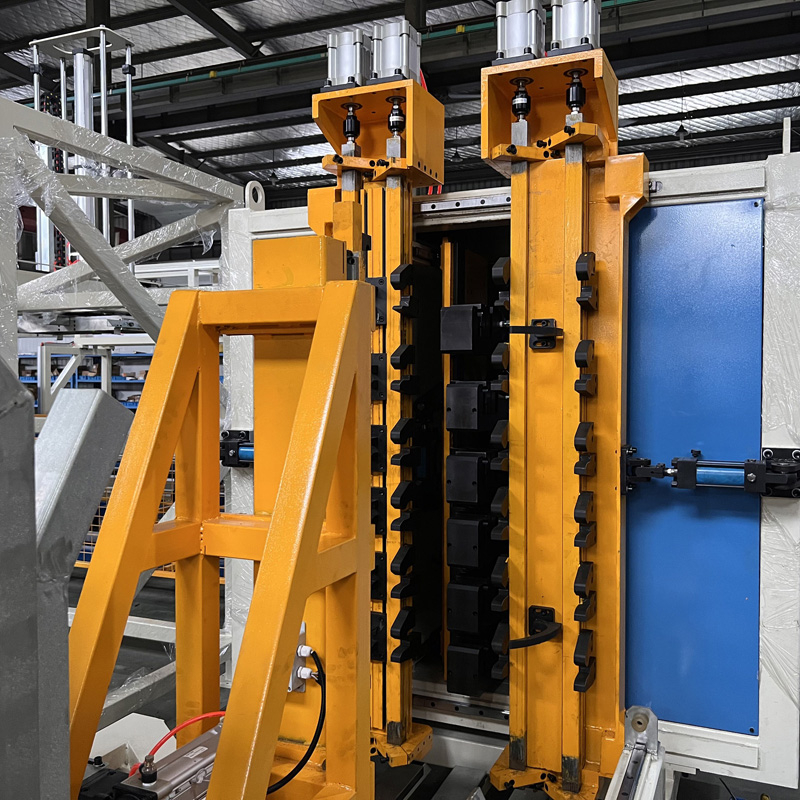

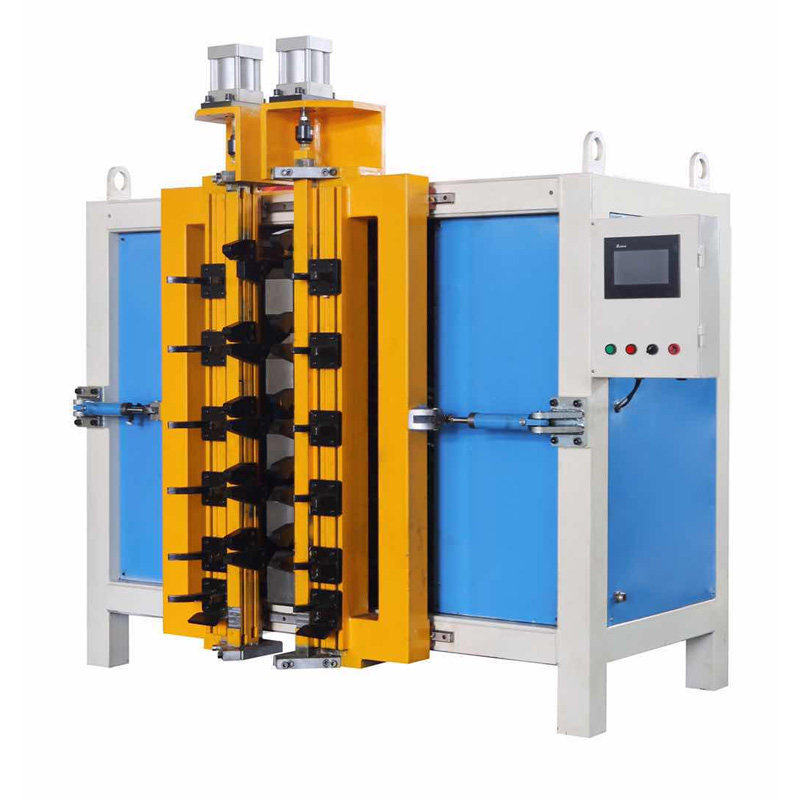

IBC Cage Clinching Machine
Key Features
Cold-Joining Technology – No Welding, No Heat
Connects steel components using a controlled clinching process without melting materials — no sparks, fumes, or heat deformation.
High-Strength Pressing System
Equipped with electric servo, capable of joining up to 4.0mm combined thickness steel with stable and reliable mechanical bonds.
Precision Dies for IBC Components
Custom-made dies ensure strong and repeatable joints at critical IBC cage points — including bottom corners, frame connections, and reinforcement zones.
User-Friendly Operation
PLC touch-screen control available. Quick die exchange system supports fast switching between different joint positions and product models.
Eco-Friendly Assembly
No welding gases, slag, or energy-intensive heat required — ideal for modern production lines aiming to reduce environmental impact.
Technical Parameters
Item | Specification |
Max Combined Thickness | ≤4.0 mm (carbon steel) |
Operation Mode | Automatic |
Drive Type | Electric |
Clinching Form | Round point / Oval / Customizable |
Die Material | Hardened Alloy Steel |
Cycle Time | 1–2 seconds per joint |
Control Panel (optional) | PLC with touch screen |
Power Supply (for hydraulic) | 380V / 3 Phase / 50Hz |
Custom die designs available based on your IBC frame layout.

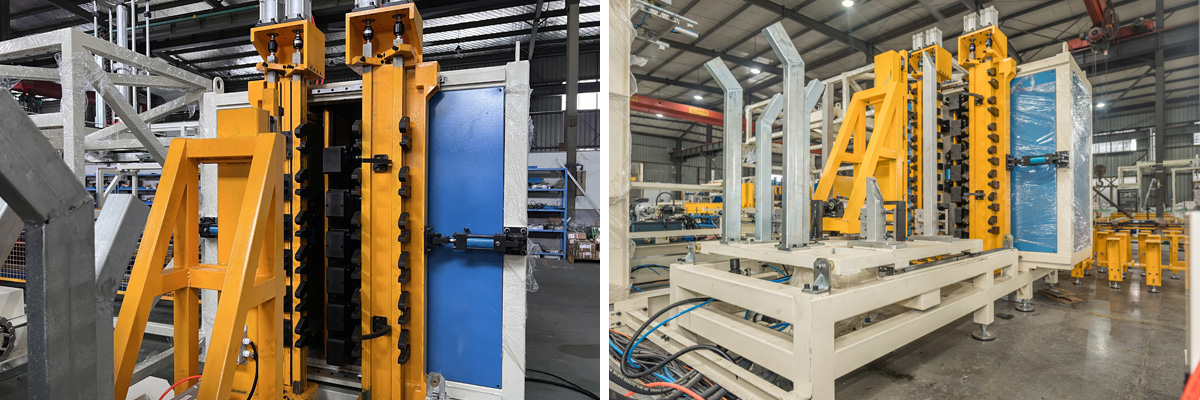

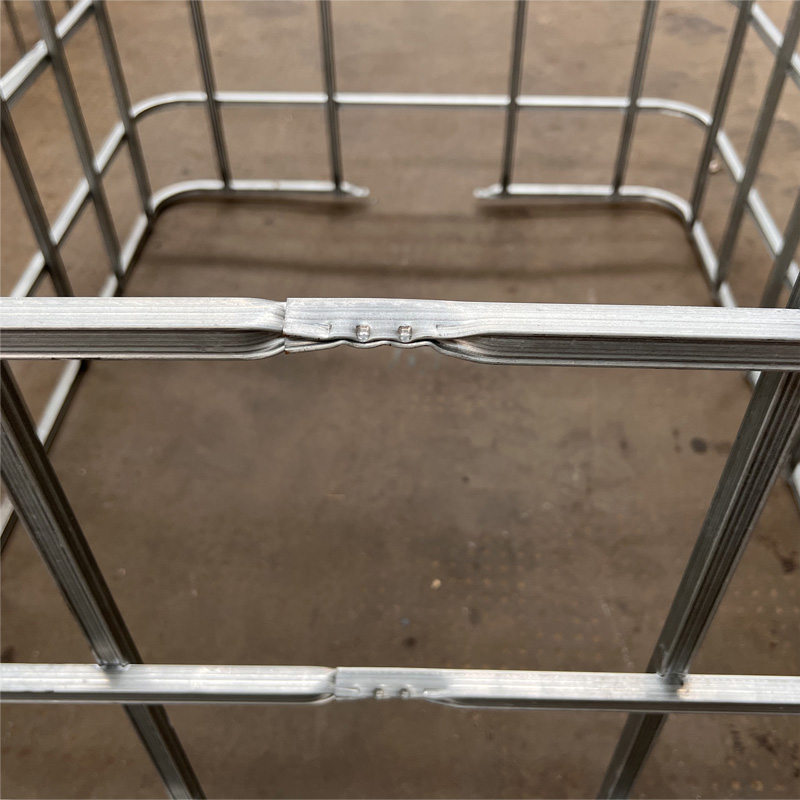

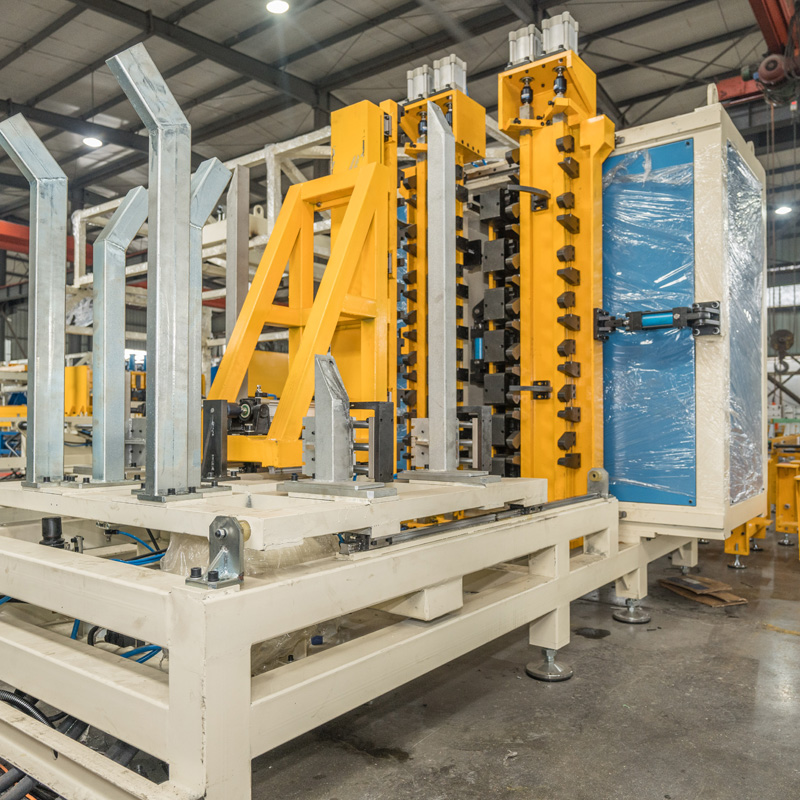

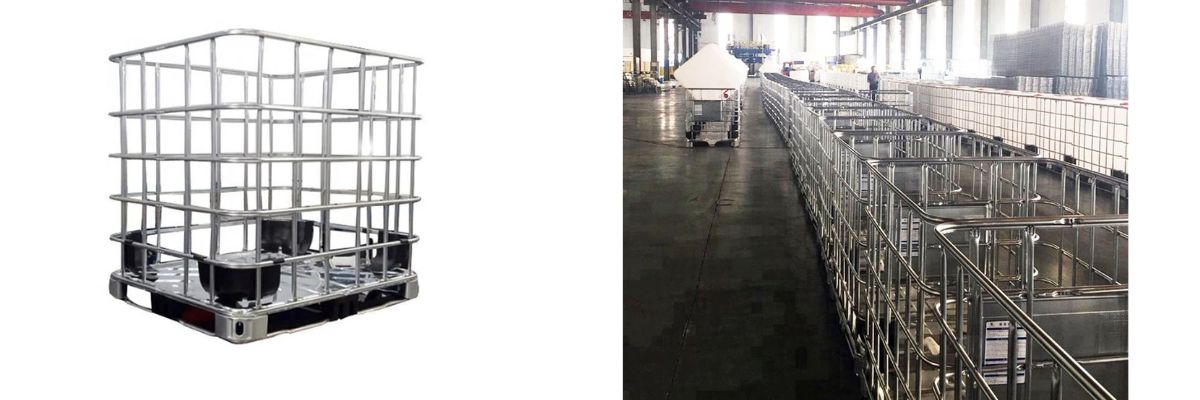

IBC Cage Display
Why Choose Xinzhou Clinching Machine?
Precision clinching for IBC-specific applications
No consumables, no post-processing required
Durable dies, easy maintenance
Factory-direct pricing & customizable specs
Engineering support for your production line layout
Optional Configurations
Multiple clinch head workstation
Rotating work table or adjustable height stand
PLC automation module with preset joint programs
Let's Build Cleaner IBC Cages Together
Whether you're upgrading your IBC production line or seeking a more sustainable way to connect your cage components — Xinzhou's clinching machine offers the strength of steel without the heat of welding.
Why Choose Xinzhou？
Our Team
IBC Technology R&D Team
7* 24-hour online service Department
IBC Machine Assembly Team
IBC Cases
Customer from Bangladesh
Customer from Brazilian
Customer from Spanish
FAQ
Q1: What types of IBC cage production lines do you offer?
A: We provide both fully automatic and semi-automatic IBC cage production lines. Each system is designed for different capacity needs and budget ranges. Fully automatic lines are ideal for high-volume, standardized production, while semi-automatic solutions offer more flexibility and lower initial investment.
Q2: Can your production line handle different cage sizes or designs?
A: Yes, our line is designed with adjustable tooling and control systems, which allow it to handle various IBC cage sizes and mesh layouts, ensuring maximum flexibility for multi-product manufacturers.
Q3: Is technical support or training provided?
A: Absolutely. We provide on-site installation guidance, operator training, and after-sales technical support, including remote diagnostics and spare parts service.
Q4: How long is the delivery and installation time?
A: Production lead time is around 90–120 working days depending on the order complexity. Installation and commissioning usually take 7–15 days on-site with our technical team.
Q5: Can I customize the machine layout according to my factory space?
A: Yes. We provide layout design based on your workshop dimensions, helping you optimize production flow and space usage.
Q6: Do you offer CE or other international certifications?
A: Yes, our machines can be CE certified and comply with international industrial standards. Additional certifications are available based on customer requirements.
