DTM-3*250
xinzhou

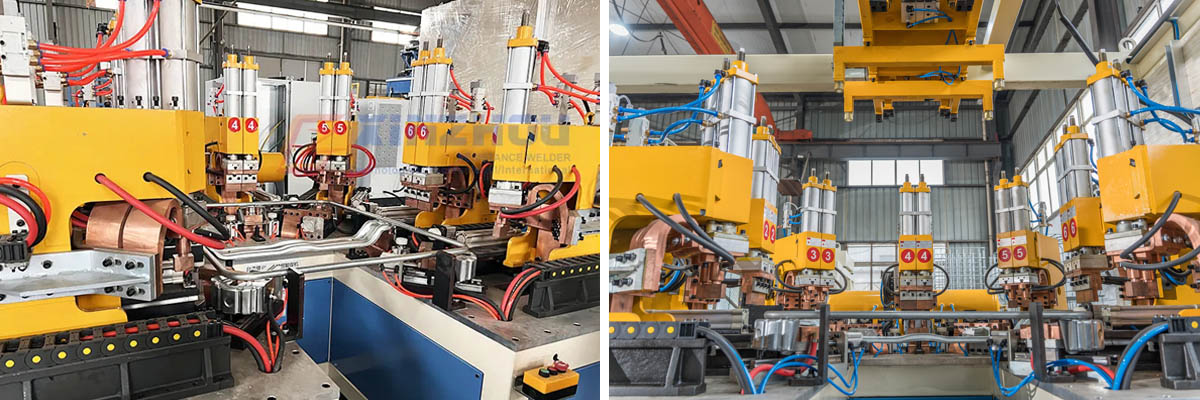

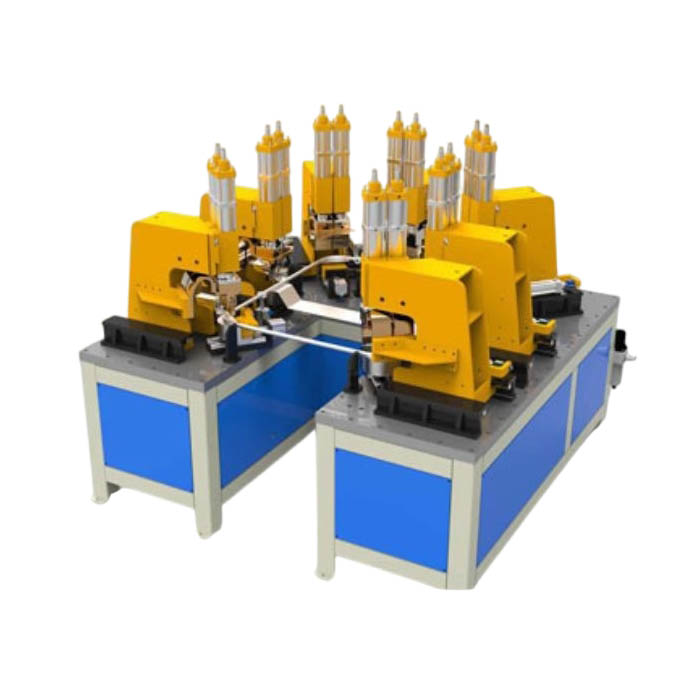

IBC Steel Pallet Welding Machine
Key Features
IBC-Only Design for Maximum Accuracy
Every jig and fixture is tailored to the IBC steel pallet structure, ensuring precise alignment and consistent weld quality.
Purpose-built exclusively for IBC base frame welding—not intended for other applications.

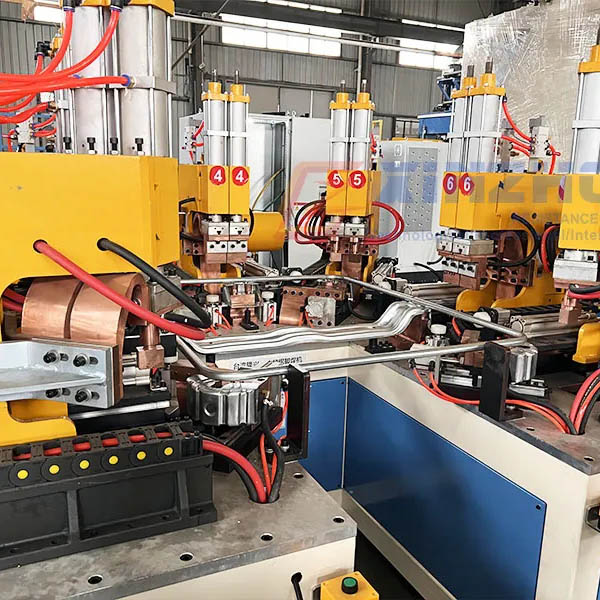

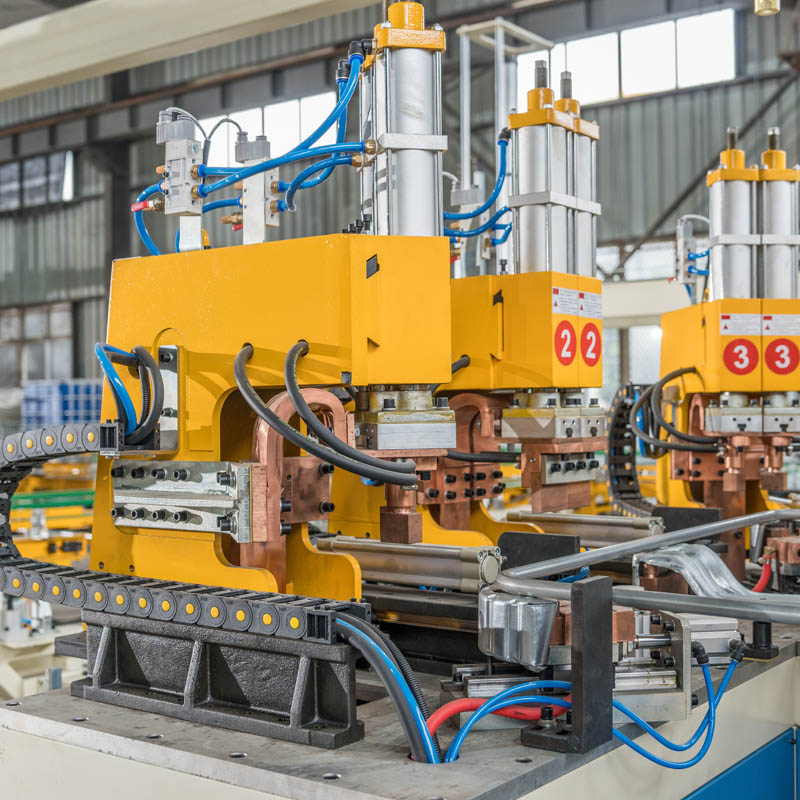

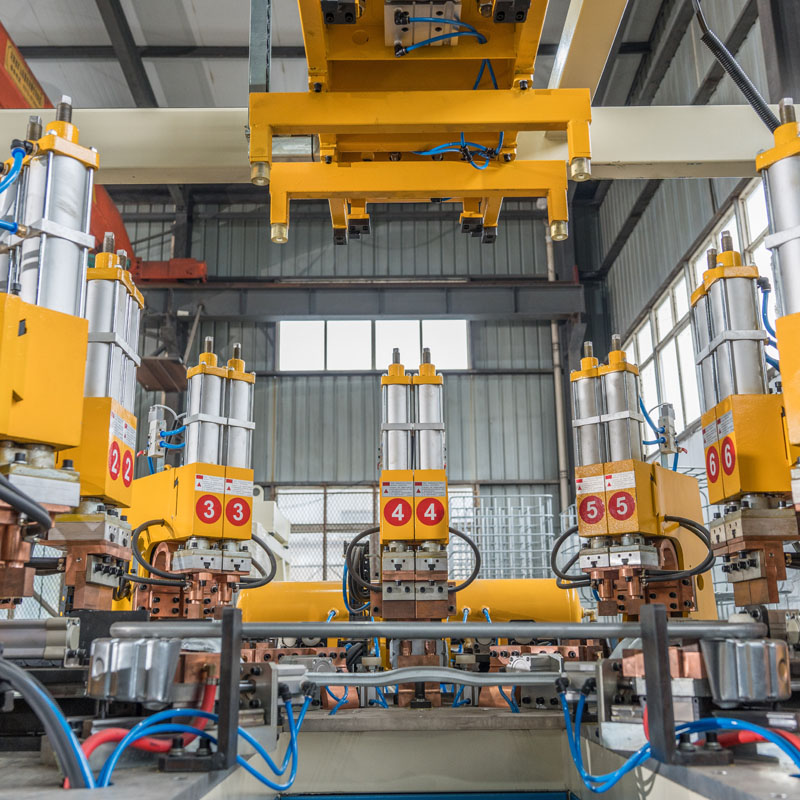

Multi-Gun Resistance Welding System
Equipped with multiple resistance welding guns, allowing for simultaneous or sequential welding of multiple points.
Eliminates manual positioning errors, reduces cycle time, and ensures uniform strength across all joints.
Supports All Major Base Components
Compatible with various IBC base parts: bottom frame, support legs, reinforcement plates, and beam tubes.
Fixture layout can be customized to fit different IBC models or base designs.
Heavy-Duty Frame & Safety Focus
Built with a solid steel structure to minimize vibration during welding.
Comes with emergency stop and operator safety features for secure operation.
Technical Specifications (Reference Model)
Item | Specification |
Welding Type | Resistance Spot Welding |
Applicable Materials | Galvanized steel pipes, stamped metal parts |
Drive Method | Pneumatic clamping + electric resistance welding |
Control System | Manual button / Optional PLC control |
Welding Configuration | Multi-gun synchronous or sequential control |
Fixture Design | Custom-built based on IBC base frame dimensions |
Welding Cycle Time | 20–40 seconds per unit (depending on complexity) |
Power Supply | AC 380V / 50Hz (customizable) |
Application Scope | Exclusively for IBC steel pallet fabrication |

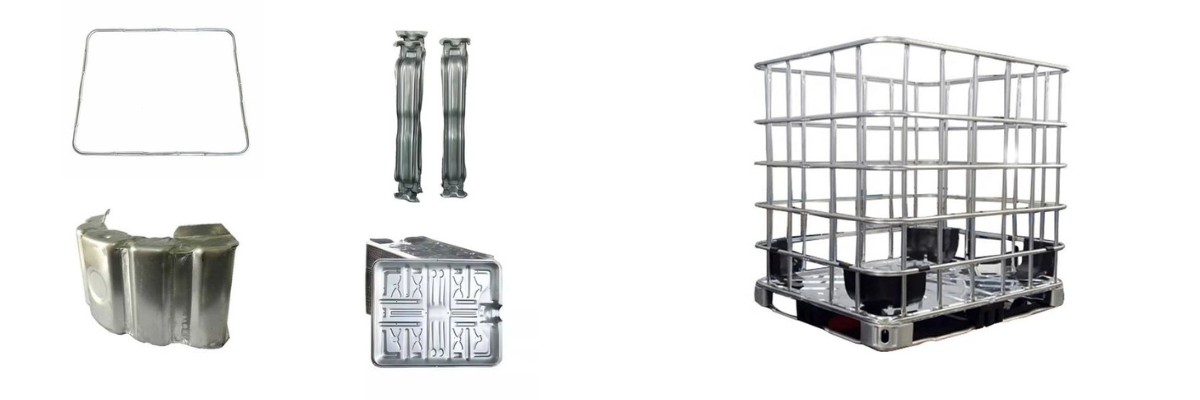

IBC Steel Pallet Display
Typical Welding Areas
Cross beam to side frame connection
Foot blocks to base frame welding
Reinforcement plate joints
Steel plate to tube welding positions
Why Choose Xinzhou’s IBC Base Welding Machine?
100% specialized for IBC steel pallet welding—no universal shortcuts
Multi-point resistance welding for better strength and lower labor costs
Flexible fixture designs for fast changeover between different base types
Factory-direct supply with over 20 years of experience in welding systems
High structural strength and operator safety designed in from day on
Why Choose Xinzhou？
Our Team
IBC Technology R&D Team
7* 24-hour online service Department
IBC Machine Assembly Team
IBC Cases
Customer from Bangladesh
Customer from Brazilian
Customer from Spanish
FAQ
Q1: What types of IBC cage production lines do you offer?
A: We provide both fully automatic and semi-automatic IBC cage production lines. Each system is designed for different capacity needs and budget ranges. Fully automatic lines are ideal for high-volume, standardized production, while semi-automatic solutions offer more flexibility and lower initial investment.
Q2: Can your production line handle different cage sizes or designs?
A: Yes, our line is designed with adjustable tooling and control systems, which allow it to handle various IBC cage sizes and mesh layouts, ensuring maximum flexibility for multi-product manufacturers.
Q3: Is technical support or training provided?
A: Absolutely. We provide on-site installation guidance, operator training, and after-sales technical support, including remote diagnostics and spare parts service.
Q4: How long is the delivery and installation time?
A: Production lead time is around 90–120 working days depending on the order complexity. Installation and commissioning usually take 7–15 days on-site with our technical team.
Q5: Can I customize the machine layout according to my factory space?
A: Yes. We provide layout design based on your workshop dimensions, helping you optimize production flow and space usage.
Q6: Do you offer CE or other international certifications?
A: Yes, our machines can be CE certified and comply with international industrial standards. Additional certifications are available based on customer requirements.
