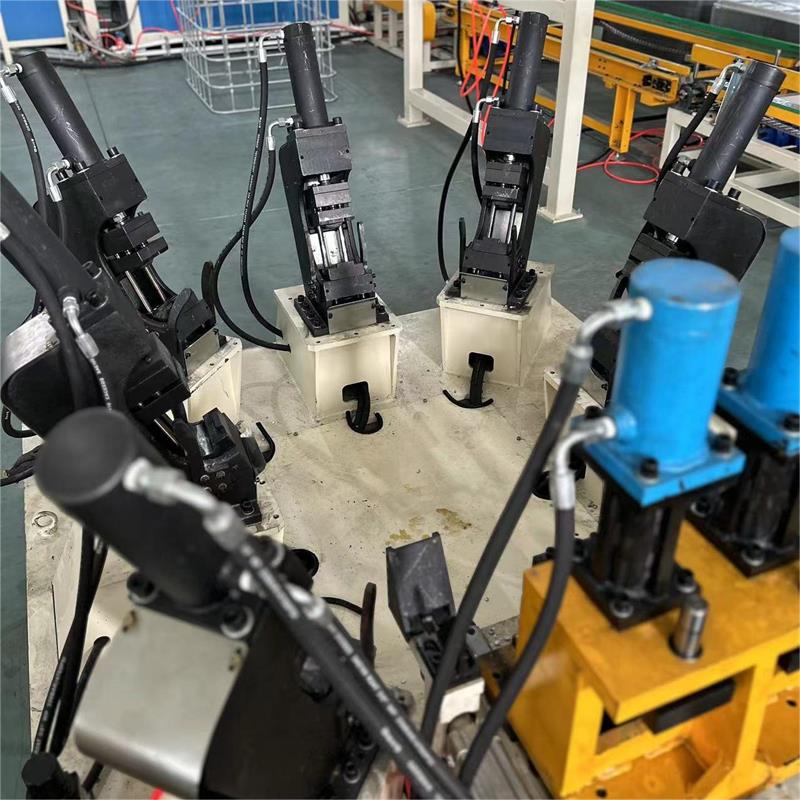

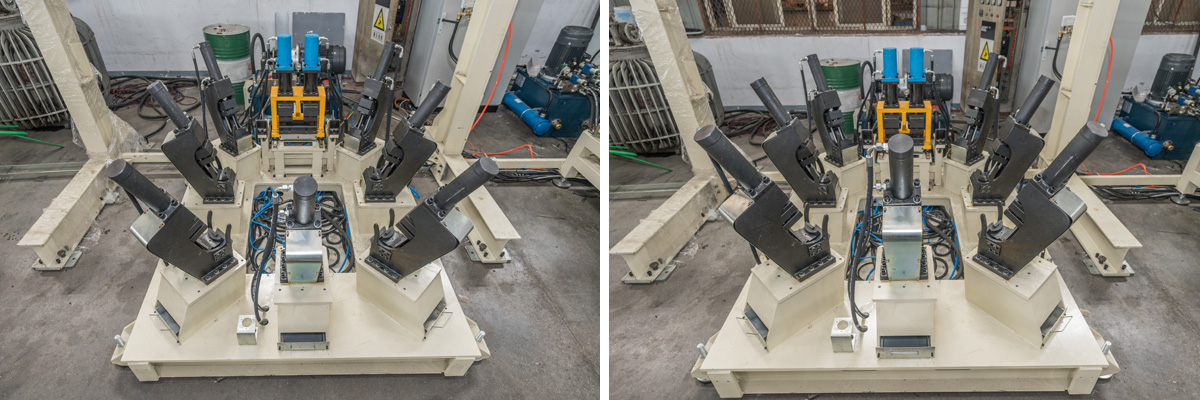

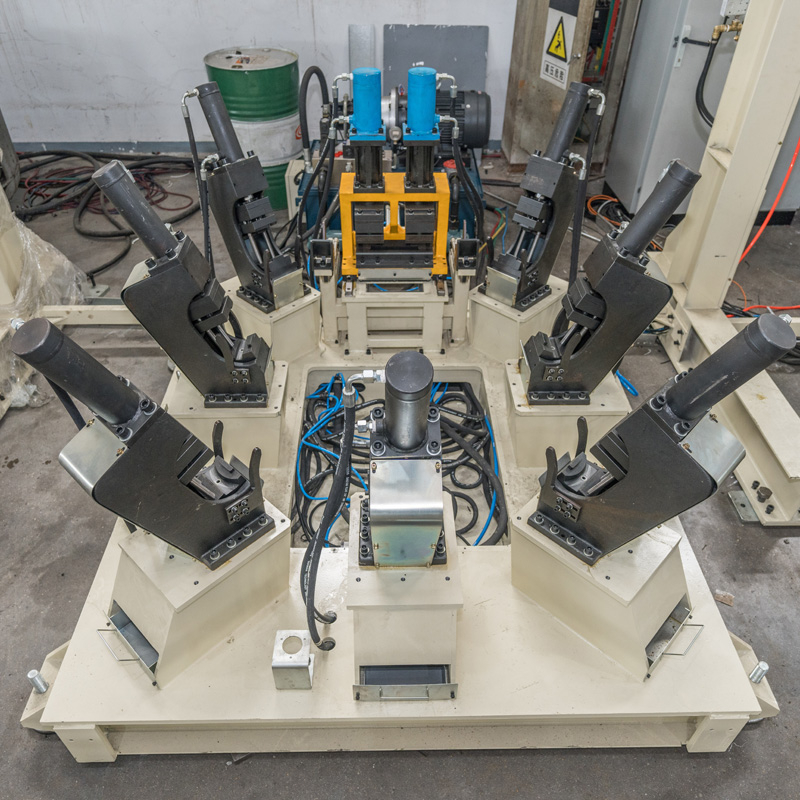

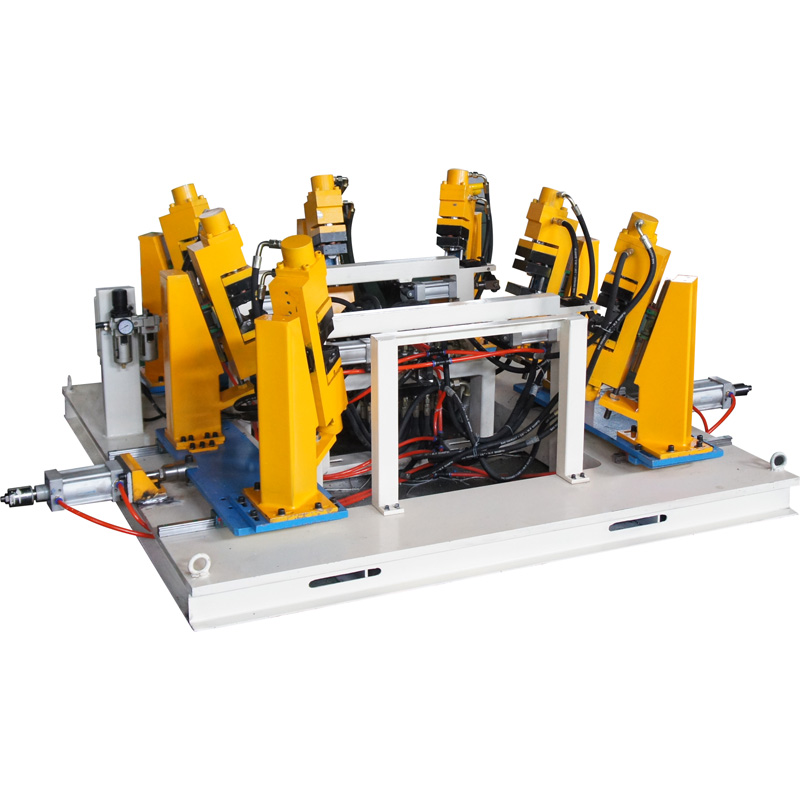

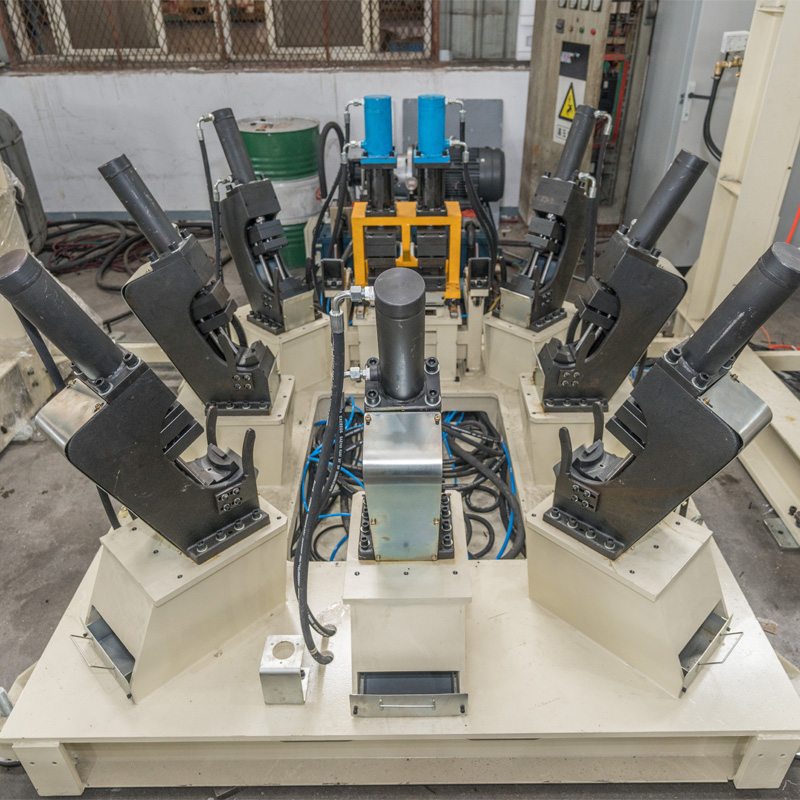

IBC Cage Punching Machine
Key Features
Purpose-Built for IBC Production Only
All structural design, mold setup, and tooling configuration are optimized for standard IBC cage pipe punching.
Exclusively used for IBC cage manufacturing, not intended for other industries or materials—ensuring consistent quality and performance.
Hydraulic Drive · Strong and Stable
Equipped with a heavy-duty hydraulic station and high-pressure cylinder, the machine offers reliable and continuous punching force.
Ideal for thicker-walled pipes (1.2mm–2.5mm) and operations requiring larger hole sizes or higher impact strength.
Custom Mold Design · Multi-Hole Layout
Molds are custom-developed based on IBC cage drawings to match standard hole positions for welding and assembly.
Supports quick mold switching for flexible production and faster turnaround on different models.
Robust Construction · Safe Operation
Built with a heavy-duty steel frame for maximum durability and vibration resistance.
Comes with complete safety covers and emergency stop controls to ensure operator safety.
Technical Specifications (Reference Configuration)
Item | Specification |
Drive Type | Hydraulic (High-Pressure Cylinder + Station) |
Applicable Pipe Types | Galvanized steel pipes / Carbon steel pipes |
Pipe Wall Thickness | 1.5mm – 2.0mm |
Punching Hole Diameter | Ø14mm – Ø20mm (Customizable) |
Punching Cycle Time | 1–2 seconds per hole (depends on material) |
Control Mode | Manual Button / Foot Pedal / Optional PLC |
Mold Design | Single-station / Multi-hole tooling optional |
Dimensions / Weight | Customizable per customer requirements |
Application Scope | Exclusive to IBC cage tube punching |

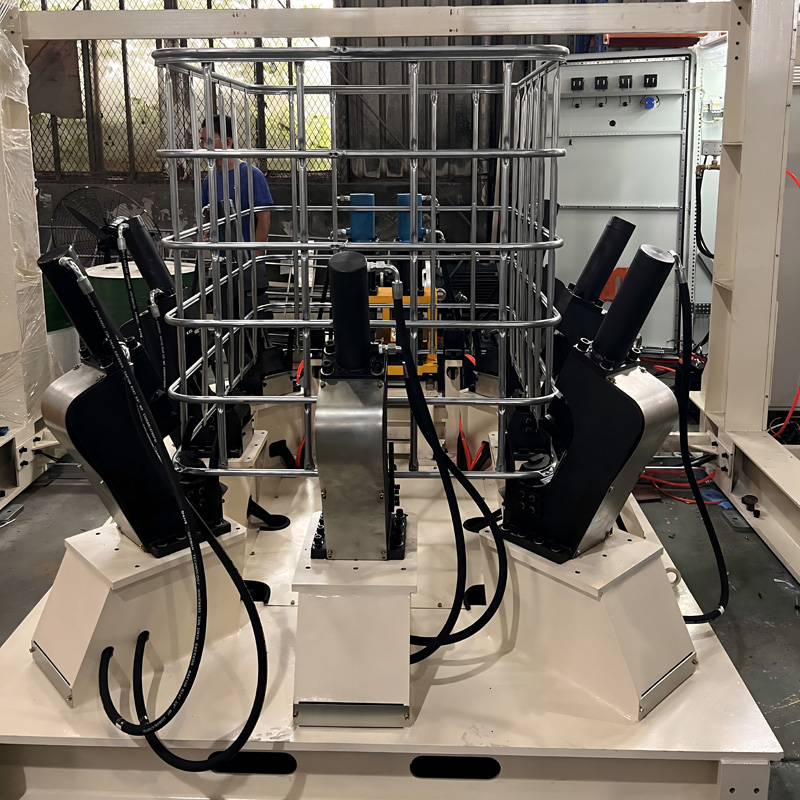

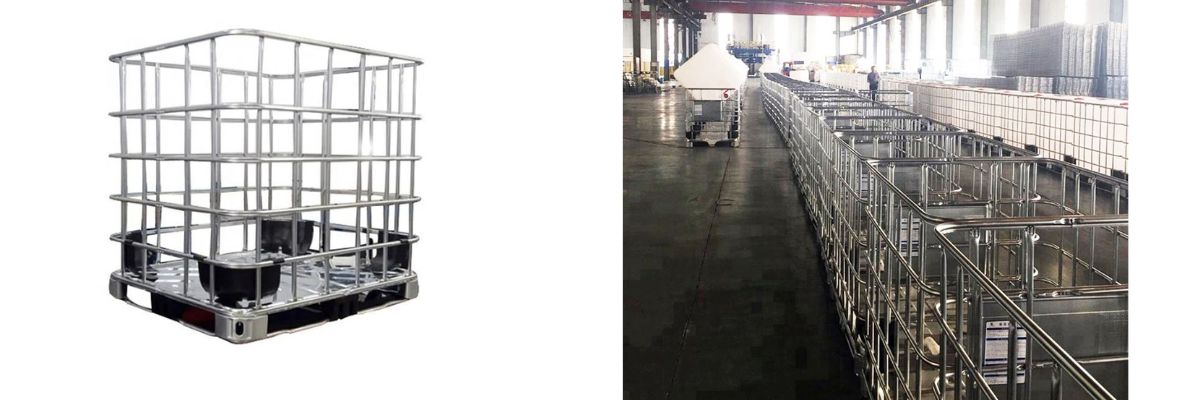

IBC Cage Display
Application Highlights
Base frame crossbars
Top ring and side bar joints
Leg and vertical pipe connections
Reinforcement plate holes
Welding and alignment holes
Why Choose Xinzhou's Hydraulic Punching Machine?
Industry-specific design—built exclusively for IBC cage production
Strong hydraulic power for high-load, consistent performance
Flexible and customizable mold options
Factory-direct supply, fully compatible with other IBC machinery
Backed by 20+ years of experience in welding and punching solutions
Our Team
IBC Technology R&D Team
7* 24-hour online service Department
IBC Machine Assembly Team
IBC Cases
Customer from Bangladesh
Customer from Brazilian
Customer from Spanish
FAQ
Q1: What types of IBC cage production lines do you offer?
A: We provide both fully automatic and semi-automatic IBC cage production lines. Each system is designed for different capacity needs and budget ranges. Fully automatic lines are ideal for high-volume, standardized production, while semi-automatic solutions offer more flexibility and lower initial investment.
Q2: Can your production line handle different cage sizes or designs?
A: Yes, our line is designed with adjustable tooling and control systems, which allow it to handle various IBC cage sizes and mesh layouts, ensuring maximum flexibility for multi-product manufacturers.
Q3: Is technical support or training provided?
A: Absolutely. We provide on-site installation guidance, operator training, and after-sales technical support, including remote diagnostics and spare parts service.
Q4: How long is the delivery and installation time?
A: Production lead time is around 90–120 working days depending on the order complexity. Installation and commissioning usually take 7–15 days on-site with our technical team.
Q5: Can I customize the machine layout according to my factory space?
A: Yes. We provide layout design based on your workshop dimensions, helping you optimize production flow and space usage.
Q6: Do you offer CE or other international certifications?
A: Yes, our machines can be CE certified and comply with international industrial standards. Additional certifications are available based on customer requirements.
