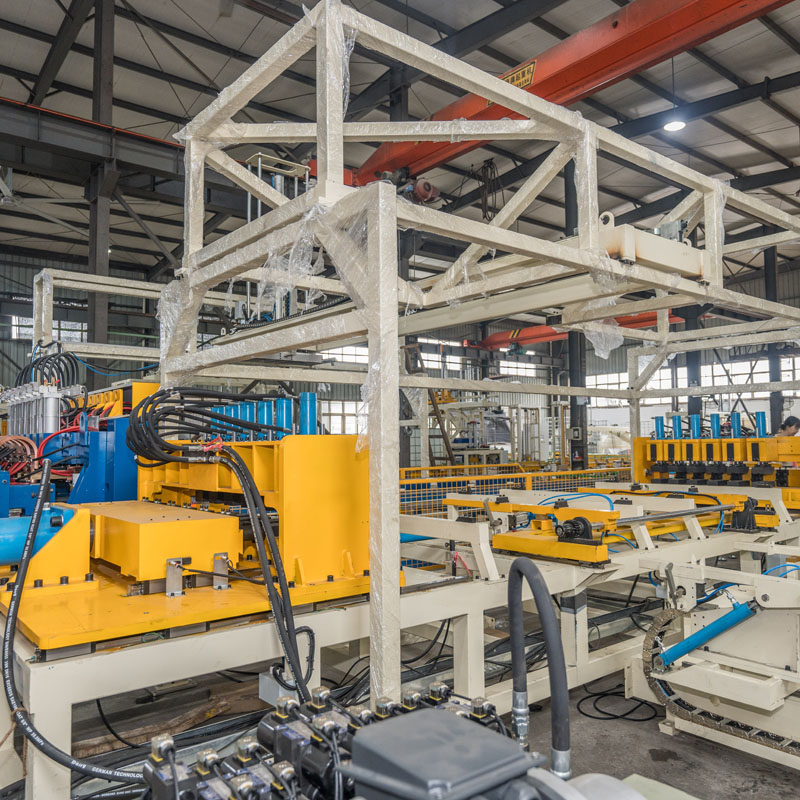

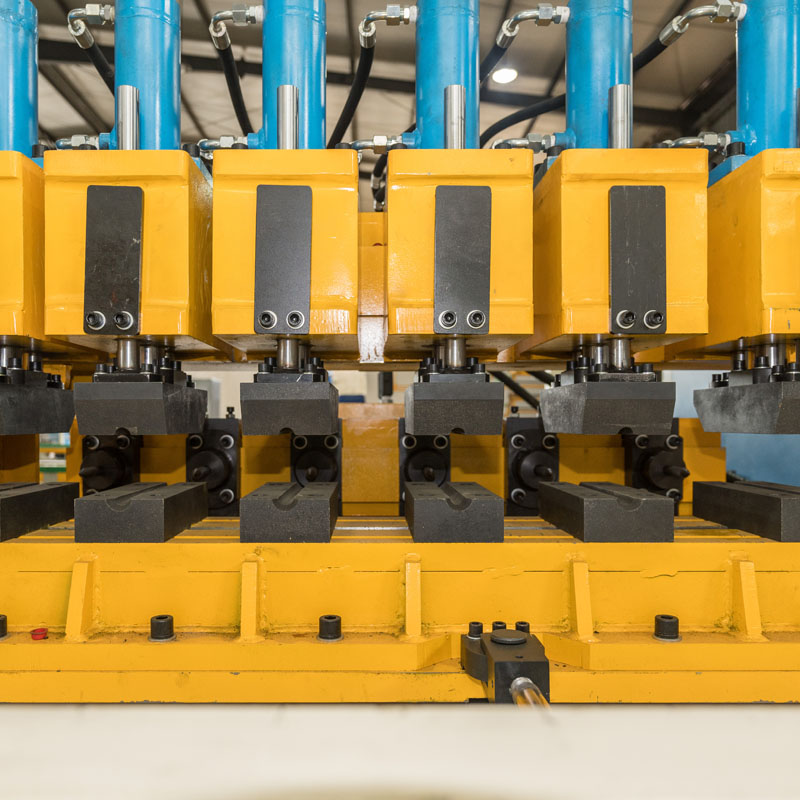

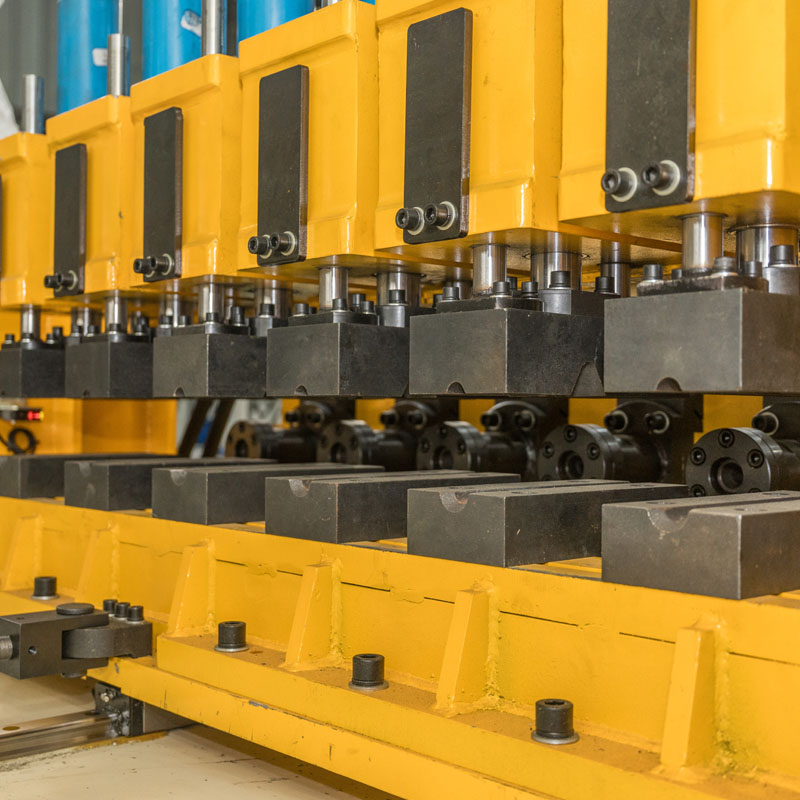

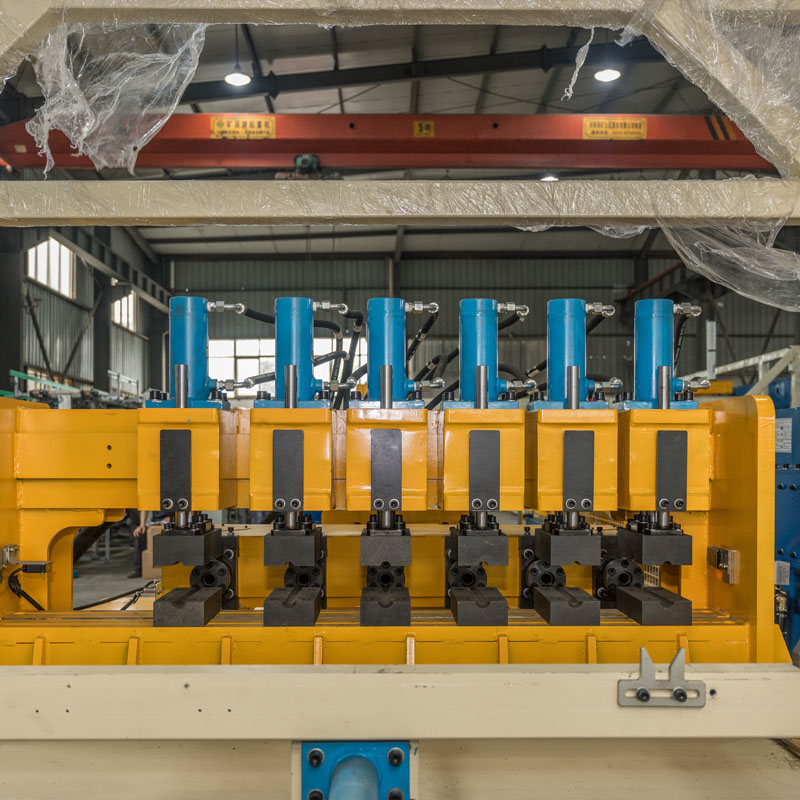

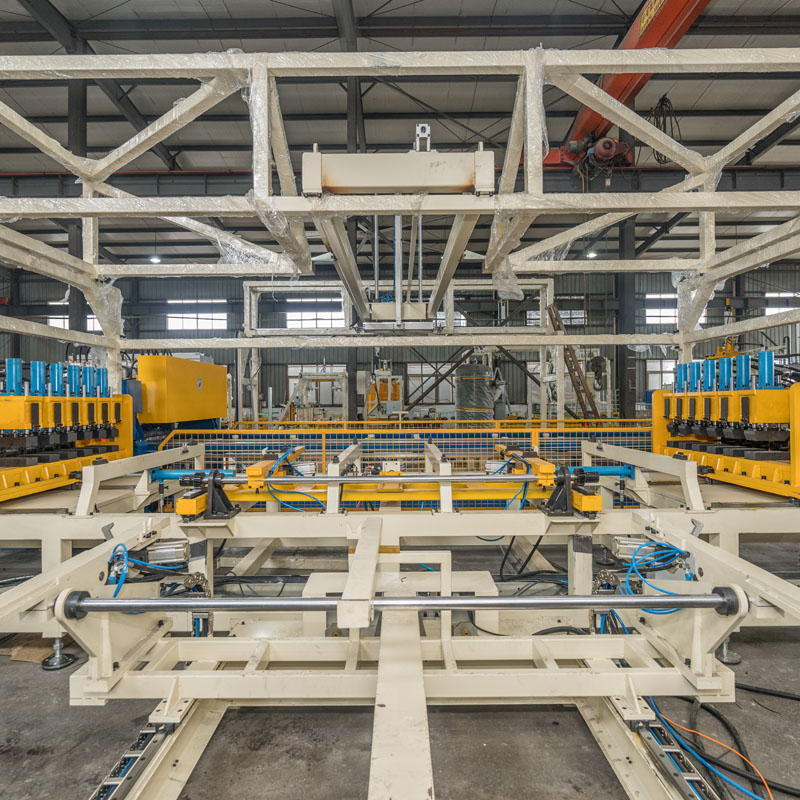

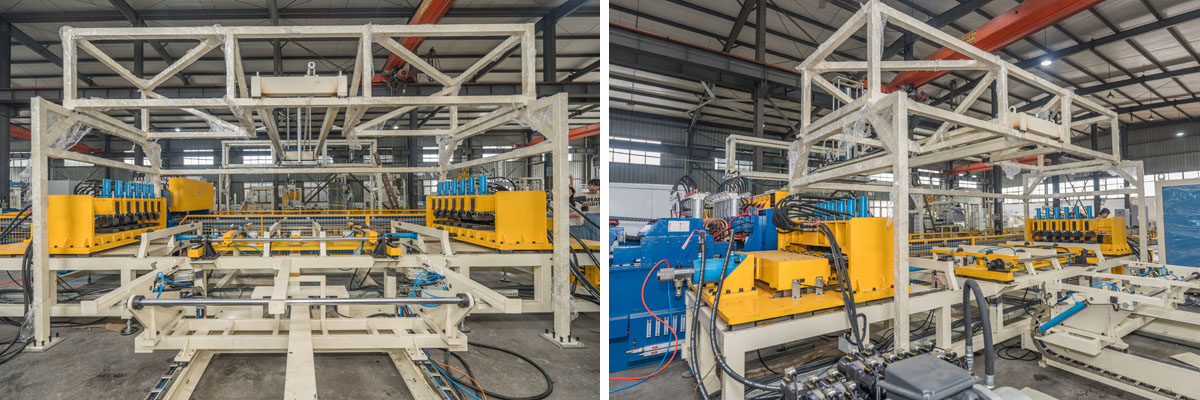

IBC Cage Pipe Reducing Machine
Key Features
IBC-Specific Design for Higher Accuracy
Molds are custom-designed to fit IBC cage frame pipe standards, with high consistency in the reduced pipe size.
Exclusively for IBC applications, ensuring the best fit for pipe insertion and welding.
Hydraulic Drive for Stable and Efficient Operation
Uses hydraulic drive, providing powerful, stable, and consistent pipe reducing action.
Supports custom pipe end reduction shapes (round, square, semi-sealed, etc.).
Compatible with Various Frame Structures
Suitable for reducing pipe ends for IBC horizontal beams, vertical edge pipes, corner connections, and more.
Easily interchangeable molds for different pipe sizes and configurations.
Compact Design for Easy Operation
User-friendly operation with foot-pedal or button control for single-person use.
Ensures smooth, non-deforming pipe reduction, preserving the integrity of galvanized steel pipes.
Technical Specifications (Reference Model)
Item | Specification |
Applicable Pipe Sizes | Φ14–Φ20mm galvanized round pipes / square tubes |
Reducing Method | External mold compression (customizable) |
Drive Method | Hydraulic drive (standard) |
Control Method | Button operation |
Reduction Length | Adjustable (standard 20–60mm) |
Reducing Accuracy | ±0.2mm |
Cycle Time | 6–10 seconds per pipe (depending on material and size) |
Mold Interchangeability | Quick-change design for different sizes |
Application Scope | Exclusively for IBC cage pipe end reduction |

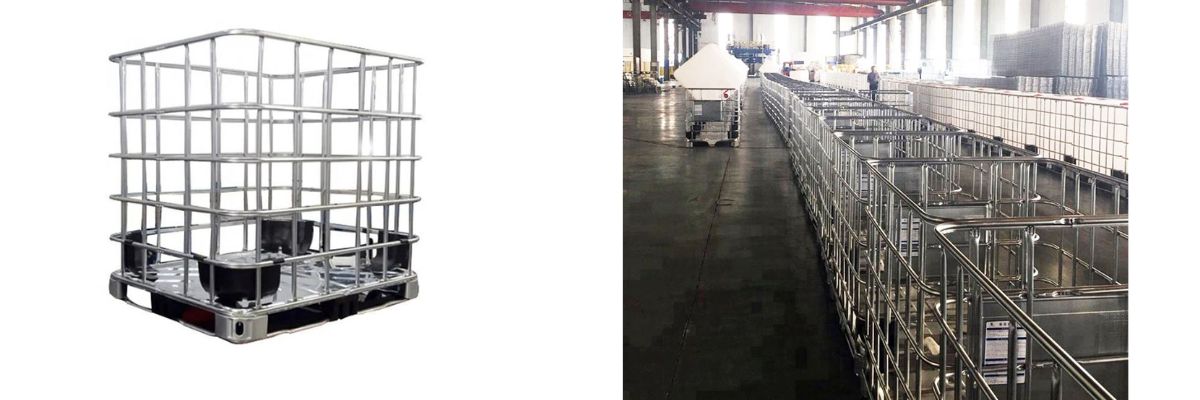

IBC Cage Display
Typical Application Areas
Horizontal beam and edge pipe insertion points
Corner frame pipe end reduction for easy insertion
Pipe-to-pipe welding connections in frame assembly
Enhancing pipe fit before welding to prevent misalignment
Feature | Benefit |
Dedicated Design | Built specifically for IBC cage frames, no universal compromises. |
Wide Range of Molds | Custom molds available, easy to switch for different pipe sizes. |
Stable and Strong Reduction | No cracks, no rebound, ensuring solid welds. |
Compact and User-Friendly | One-click operation, easy for single-person use. |
Factory-Direct Supply | Manufactured in-house, with full quality assurance and after-sales support. |
Our Team
IBC Technology R&D Team
7* 24-hour online service Department
IBC Machine Assembly Team
IBC Cases
Customer from Bangladesh
Customer from Brazilian
Customer from Spanish
FAQ
Q1: What types of IBC cage production lines do you offer?
A: We provide both fully automatic and semi-automatic IBC cage production lines. Each system is designed for different capacity needs and budget ranges. Fully automatic lines are ideal for high-volume, standardized production, while semi-automatic solutions offer more flexibility and lower initial investment.
Q2: Can your production line handle different cage sizes or designs?
A: Yes, our line is designed with adjustable tooling and control systems, which allow it to handle various IBC cage sizes and mesh layouts, ensuring maximum flexibility for multi-product manufacturers.
Q3: Is technical support or training provided?
A: Absolutely. We provide on-site installation guidance, operator training, and after-sales technical support, including remote diagnostics and spare parts service.
Q4: How long is the delivery and installation time?
A: Production lead time is around 90–120 working days depending on the order complexity. Installation and commissioning usually take 7–15 days on-site with our technical team.
Q5: Can I customize the machine layout according to my factory space?
A: Yes. We provide layout design based on your workshop dimensions, helping you optimize production flow and space usage.
Q6: Do you offer CE or other international certifications?
A: Yes, our machines can be CE certified and comply with international industrial standards. Additional certifications are available based on customer requirements.
