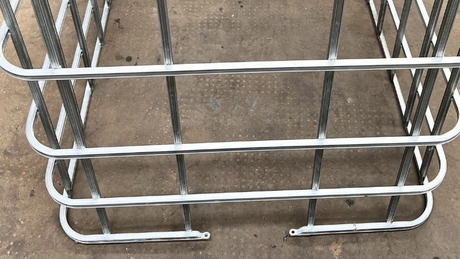

In the production of IBC Cages (Intermediate Bulk Container Frames), the welding process is critical to determining product quality, production efficiency, and site utilization. Many enterprises face the dilemma of choosing between fully automatic and semi-automatic lines when purchasing equipment. They worry that fully automatic lines require high investment and large space, while semi-automatic lines may fail to meet future capacity demands and lead to rising labor costs. In fact, neither type is absolutely superior; the key lies in matching your actual production capacity, site conditions, and order structure. Combining real-world production data on site requirements and capacity, this article helps you accurately identify the right solution by analyzing core differences and selection methods.

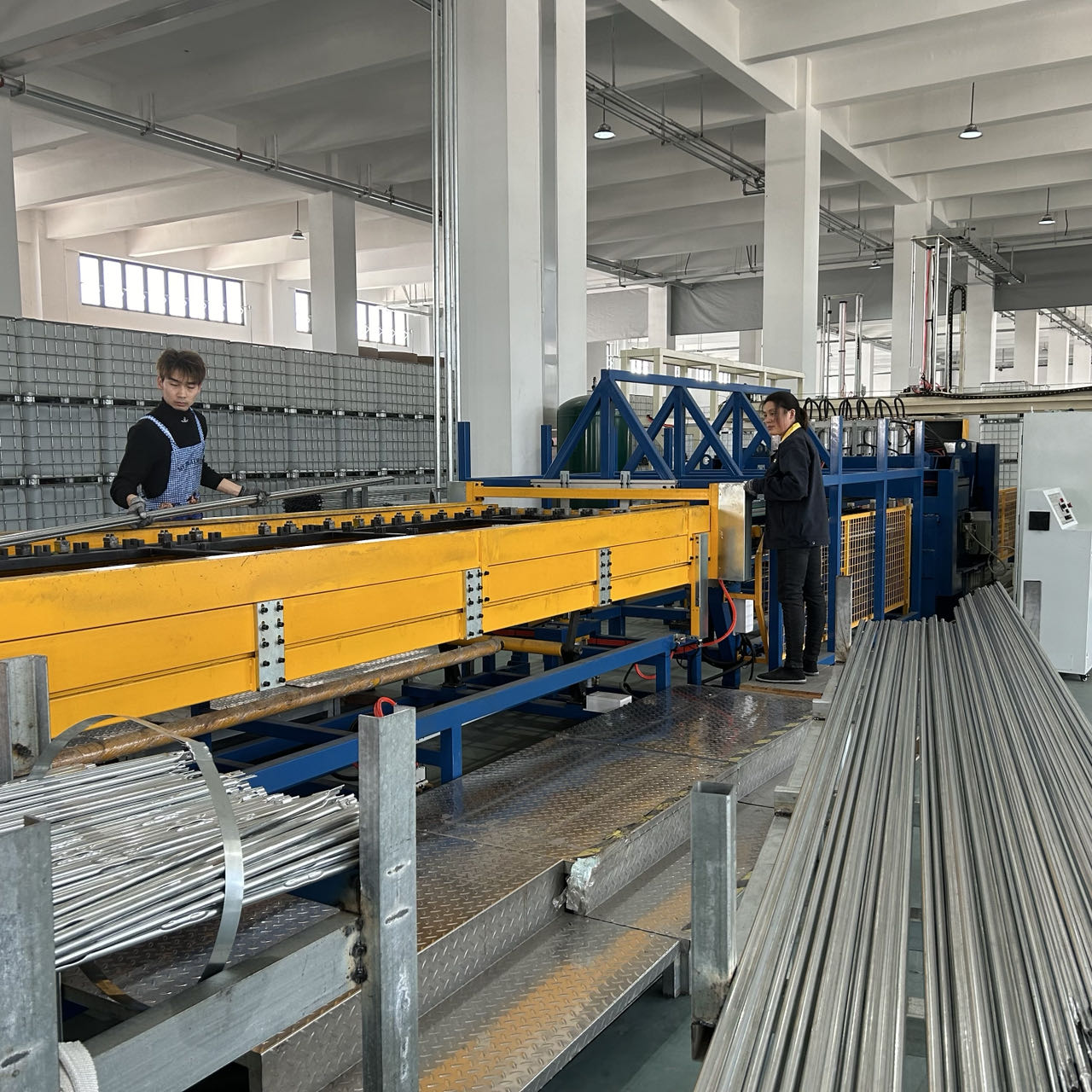

Capacity Performance: A single fully automatic line can achieve a daily output of 300-600 IBC Cages (based on an 8-hour workday, including 3-4 welding stations and upstream/downstream auxiliary modules). Its capacity stability is extremely high, with almost no impact from workers’ skills.
Site Requirements: It requires 8,000-10,000 square meters per line, covering raw material warehouses, the main production line, finished product temporary storage areas, and equipment maintenance rooms. Additionally, it has high req
uirements for floor flatness (error ≤ 3mm) and power capacity (380V high-voltage electricity, total power ≥ 120kW). Advance planning for load-bearing and logistics channels is necessary.
Core Advantages & Disadvantages: It has low long-term labor costs (annual labor cost approximately 150,000-200,000 RMB) and a low welding defect rate (≤ 0.3%). However, it requires high initial investment (about 4-6 times that of a semi-automatic line) and has slow model changeovers (2-3 days of debugging required to adapt to new specifications). It is suitable for large-batch, stable orders with a single specification.
Capacity Performance: A single semi-automatic line has a daily output of approximately 80-200 IBC Cages. Its capacity is greatly affected by the efficiency of manual cooperation – a skilled team can reach 220 units per day, while a novice team may produce less than 60 units per day.
Site Requirements: It requires 5,000-7,000 square meters per line (some automated auxiliary modules can be simplified, and raw material and finished product areas can be shared). It has lower power requirements (380V, total power ≥ 60kW) and allows a floor flatness error of ≤ 5mm, making it more compatible with existing workshop renovations.
Core Advantages & Disadvantages: It has low initial investment (about 1/4 of a fully automatic line), flexible model changeovers (only 2-4 hours of debugging required to switch specifications), and low maintenance costs. However, it has high long-term labor costs (annual labor cost approximately 400,000-600,000 RMB) and a relatively high defect rate (2%-4%). It is suitable for small-batch orders with multiple specifications.
| Comparison Dimension | Fully Automatic Welding Production Line | Semi-Automatic Welding Production Line |
|---|---|---|
| Daily Capacity Adaptation Range | Over 200 units (for large-batch stable orders) | Under 200 units (for small-batch multi-batch orders) |
| Site Requirement per Line | 8,000-10,000 ㎡ (independent workshop planning required) | 5,000-7,000 ㎡ (existing workshop renovation feasible) |
| Annual Labor Cost | 150,000-200,000 RMB (2-3 people) | 400,000-600,000 RMB (6-8 people) |
| Return on Investment (ROI) Period | 3-4 years (when orders are stable) | 1.5-2 years (for small-batch orders) |
If the average monthly order volume is ≥ 6,000 units (daily average ≥ 200 units) and there are plans to expand to a daily average of 300 units in the future, prioritize a fully automatic line. Even if a new workshop is needed for the current site, the long-term benefits brought by high capacity will cover the investment in the site and equipment.
If the average monthly order volume is ≤ 4,000 units (daily average ≤ 130 units) and most orders are "200-500 units per batch", a semi-automatic line is more suitable. It can utilize existing workshops of over 5,000 square meters, avoiding double waste of site and equipment.
If the site area is ≤ 6,000 square meters: Directly rule out fully automatic lines and choose semi-automatic lines (suitable for 5,000-7,000 square meters) to avoid additional costs caused by forced renovation due to insufficient site space later.
If the site area is ≥ 8,000 square meters: Further judge based on capacity. If the capacity meets the requirement, select a fully automatic line; if not, reserve 2,000-3,000 square meters of open space for future expansion to avoid repeated planning.
If the change frequency is ≥ 2 times per week (multiple specifications with small batches): Choose a semi-automatic line. Frequent model changes will not significantly affect capacity, and debugging costs are low.
If the change frequency is ≤ 1 time per month (single specification with large batches): Choose a fully automatic line. The one-time debugging cost can be allocated to large-batch orders, resulting in higher overall efficiency.
Core Scenarios for Fully Automatic Lines: Suitable for enterprises with daily capacity ≥ 200 units, stable order specifications, site area ≥ 8,000 square meters, and sufficient budget. This includes large-scale IBC production enterprises or manufacturers planning to serve major customers such as chemical and logistics giants.
Core Scenarios for Semi-Automatic Lines: Suitable for enterprises with daily capacity ≤ 200 units, multi-specification orders, site area of 5,000-7,000 square meters, and limited budget. This includes start-up IBC enterprises or manufacturers mainly serving regional customers with high order flexibility.
If you have specific details such as the exact size of your site (e.g., length × width) and the frequency of order specification changes, I can help you create a "Site Planning and Capacity Matching Calculation Sheet for IBC Cage Welding Production Lines" to visually present the site utilization rate and cost comparison of the two solutions.
Would you like me to prepare this sheet?
